Austlift Large Swivel Eye Bolt M10 x 0.63T WLL

Description

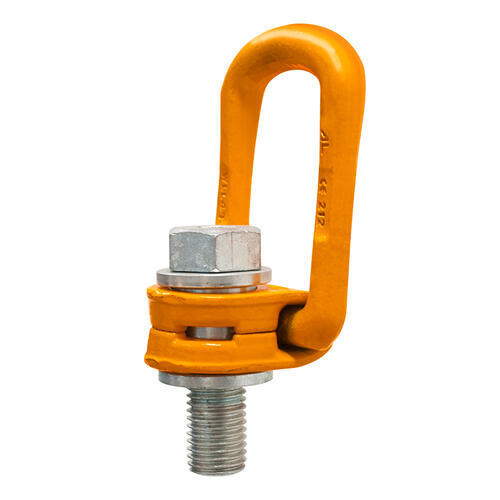

Austlift Large Swivel Eye Bolt (Short Thread)

Large ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component.
Used as a swiveling load ring able to swivel 360° with a pivot of 180°.
Made from G80 alloy steel with Orange painted finish,manufactured with an elongated ring in metric thread sizes.
Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
Proof tested to 1.25 x working load limit.
Test certificate available upon request.

Notes

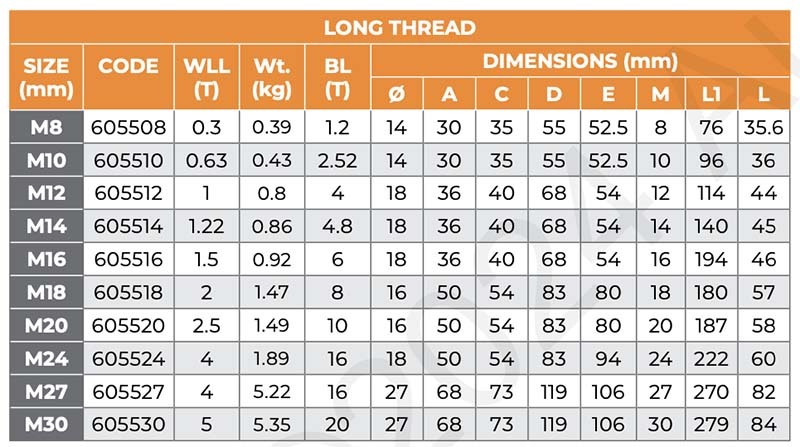

Long thread eye bolts can be cut to suits jobs.
When cutting the bolts a cold cutting method must be used.
Do not use Oxy- Acetylene cutting.
The lengthafter cutting must not be less than 1.5 times that of its diametre.

Specifications

AIMS SKU A0168906

Brand Austlift

Model Number 605210

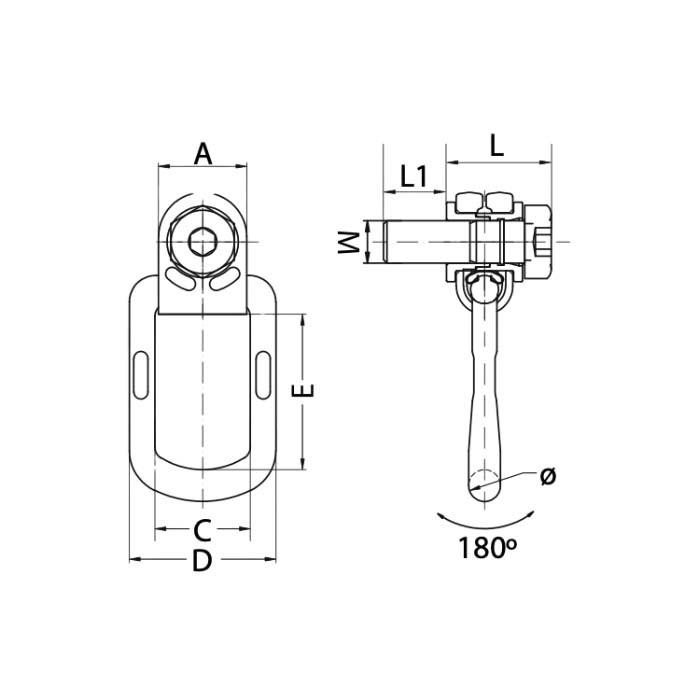

Size (mm) M10

L1 (mm) 16

C (mm) 35

A (mm) 30

E (mm) 52.5

D (mm) 55

L (mm) 36

M (mm) 10

WLL (T) 0.63

Ø (mm) 14

Wt. (kg) 0.38

BL (T) 2.52

Type Swivel Eye Bolt
