Description

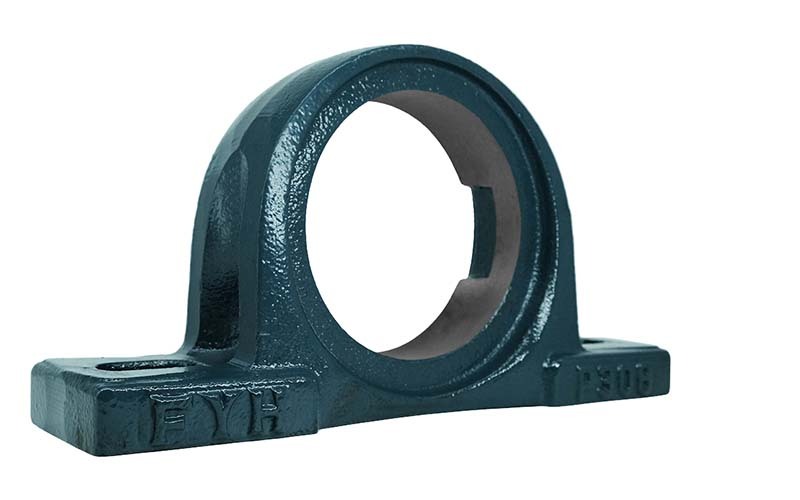

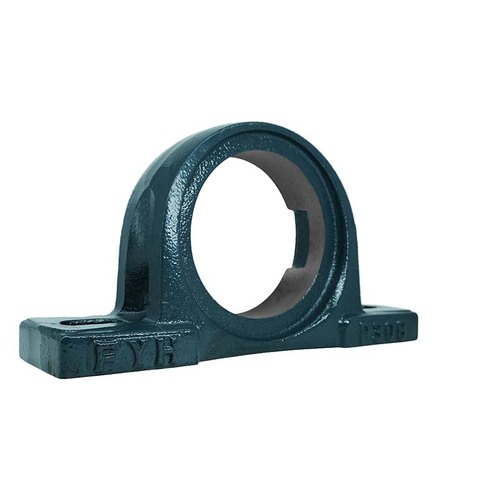

FYH Pillow Block Bearing Housing - P300 Series

Pillow type.
P300 series.

About FYH Strength Housing

FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
For loads in other directions, the allowable load must be determined specifically for the direction in question.
Rigidity of the base and flatness of the mounting surface also influence the housing strength.
The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

Specifications

AIMS SKU A0202728

Brand FYH

Model Number P317/FYH

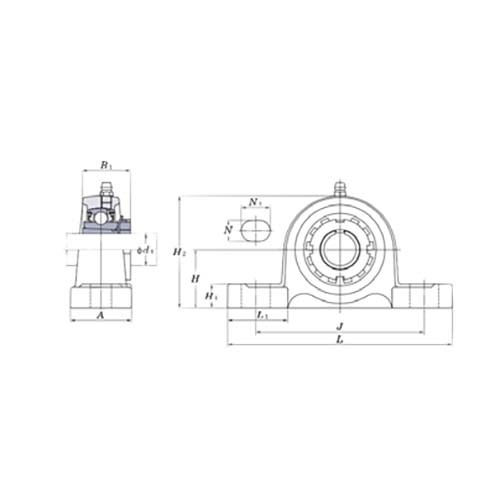

Dimension N (mm) 33

Dimension L1 (in) 4 23/32

Dimension L1 (mm) 120

Dimension H2 (in) 8 21/32

Dimension H2 (mm) 220

Dimension H1 (in) 1 9/16

Dimension H1 (mm) 40

Dimension N1 (in) 1 25/32

Dimension N1 (mm) 45

Dimension H (in) 4 13/32

Dimension S (in) 1.575

Dimension B (in) 3.78

Dimension N (in) 1 5/16

Dimension A (mm) 110

Dimension J (in) 12 19/32

Dimension J (mm) 320

Dimension A (in) 4 11/32

Dimension L (in) 16 17/32

Shaft Diameter (d) 96mm (3.78")

Dimension L (mm) 420

Dimension S (mm) 40

Dimension H (mm) 112

Bolt Size (inch) 1

Bolt Size (mm) M27

Dimension B (mm) 96

Type Bearing Housing
