Austlift 16mm (5/8") x 229mm Turnbuckle Jaw/Jaw Grade P - 1.59T WLL

Description

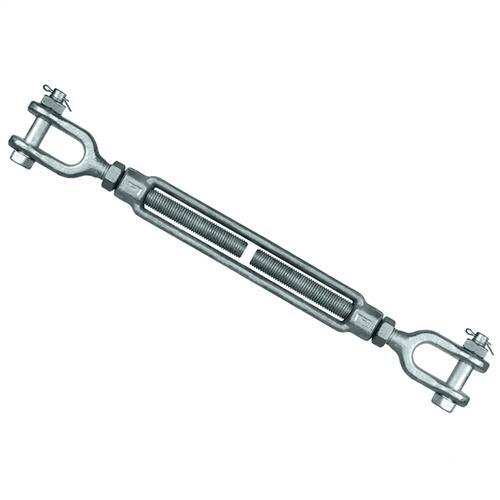

Austlift Turnbuckle Jaw/Jaw Grade P

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with locknuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum brake force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are Whitworth.

Specifications

AIMS SKU A0168708

Brand Austlift

Model Number 406016

Size 16 mm

Weight (kg) 1.56

A (mm) 16

F (mm) 401

E (mm) 662

b (mm) 19

g (mm) 33.3

L (mm) 12.7

Size (in) 5/8"

N (mm) 454

M (mm) 715

Working Load Limits Wll (t) 1.59

Body Length - C 229mm

Type Turnbuckle Jaw/Jaw
Material High Tensile
Finish Hot Dipped Galvanised
Grade Grade P
