Specifications

AIMS SKU A0158651
Brand Agri-Power
Model Number 10B-1/AGRI-POWER
Chain Number 10B
Average Tensile Strength (kN) 27.5
Chain Pitch 5/8 in
Chain Length 10 ft

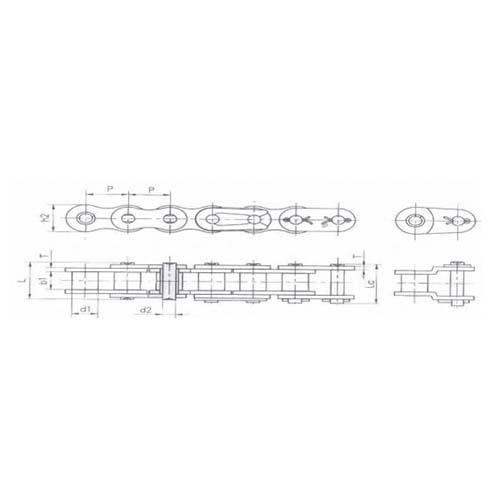

Pitch P (mm) 15.875
Roller Diameter D1 Max (mm) 10.16
Width Between Inner Plates b1 min (mm) 9.65
Pin Diameter d2 max (mm) 5.08
Pin Length L Max (mm) 19.5
Pin Length Lc Max (mm) 20.9
Inner Plate Depth h2 max (mm) 14.7
Plate Thickness T max (mm) 1.7
Ultimate Tensile Strength (kN) 22.4
Weight Per Meter (kg/m) 0.93

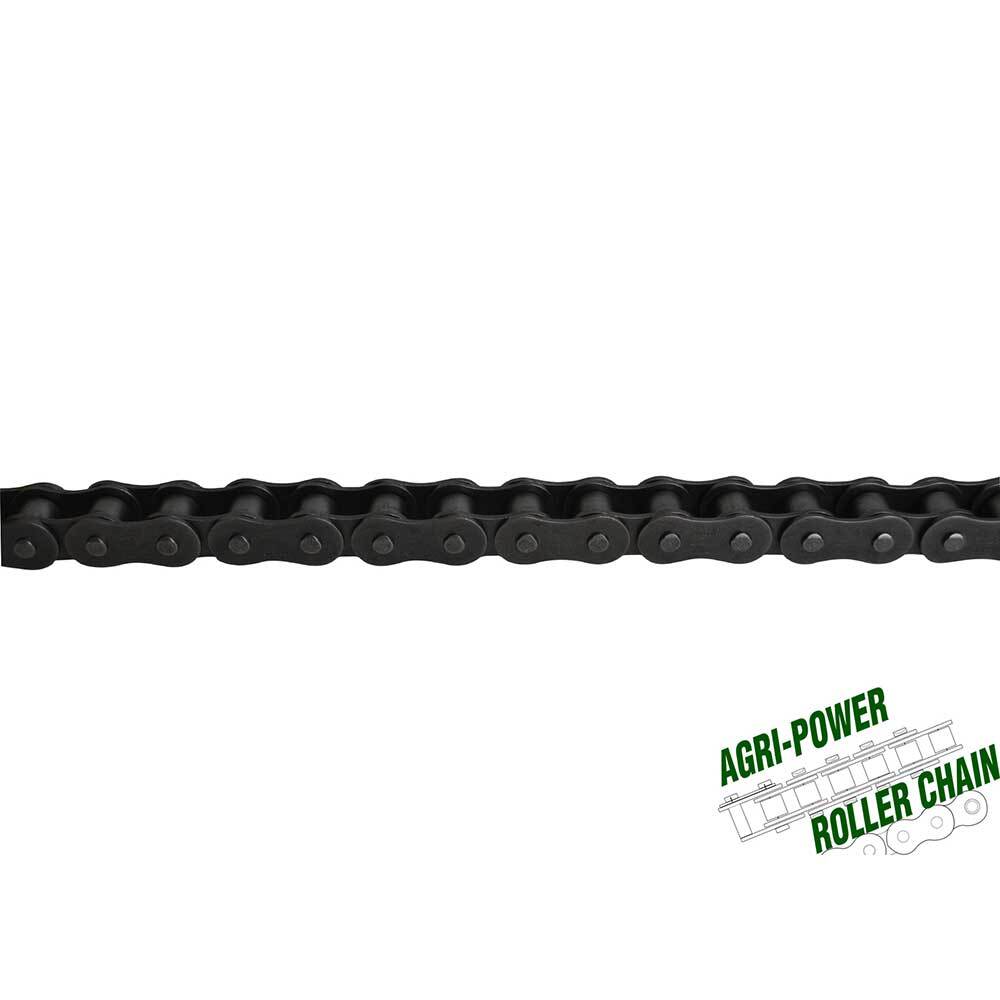

• Type Roller Chain
• System of Measurement British (BS)
• Strand Simplex
