Description

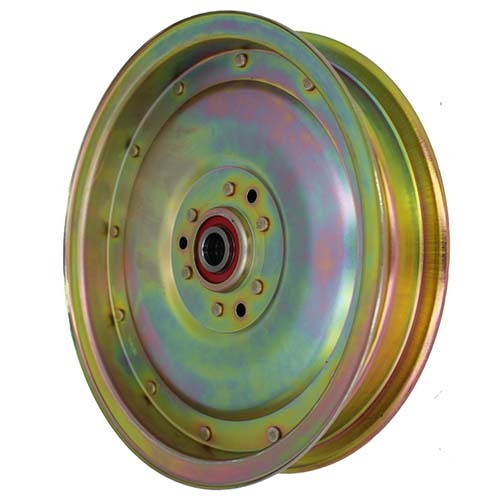

Idler Pulley Flat Flanged Double Row Zinc Plated

  • Flat Flanged - Double Row Bearing.
  • Zinc Plated Yellow Hexavalent Chromium Finish.

About Aetna Idler High-Speed Pulleys - Double Row Bearing

  • They are used in heavy-duty applications where loads and speeds are greater than required for unground bearings usually over 2000 RPM.
  • Many are used on modern combines. Aetna straight belt idlers for flat belts are available with double row bearings and bushed to clear 1/2", 5/8", and 3/4" bolts.
  • Aetna belt idlers are generally used as tensioners or direction changes.
  • Permanently lubricated and sealed against grime and dirt.
  • Fit into the existing design with little or no engineering changes or are readily adapted to new designs.

About Advantage

  • Heavy gauge precision formed steel with annular strengthening rib. A double row of steel rivets
  • Double row lubricated for life sealed precision angular contact bearing for higher capacity and rigidity.
  • Steel bushing to provide proper bolt clamping and centering.
  • Basic radial load rating of precision bearing is 3,340 pounds.

Specifications

  • AIMS SKU A0151152
  • Brand Aetna
  • Model Number F16424-B6
  • Type Idler Pulley
  • Width (inch) 1-1/2
  • Item Flat Flange Idler High Speed Pulley - Single Row Bearing Zinc Plated Yellow Hexavalent Chromium Finish
  • Bolt Size (inch) 5/8
  • D (mm) 49.212
  • A (mm) 203.2
  • E (inch) .635/.640
  • B (inch) 9
  • b (mm) 228.6
  • C (mm) 38.1
  • D (inch) 1-15/16
  • Outside Diameter (inch) 8
  • E (mm) 16.129/16.256
SKU: A0151152 On Sale

Aetna Idler Pulley Flat Flanged Zinc Yellow 8" OD x 5/8" ID x 1-1/2" Wide

Idler Pulley Flat Flanged - Single Row Zinc Plated

$184.02
$204.47
