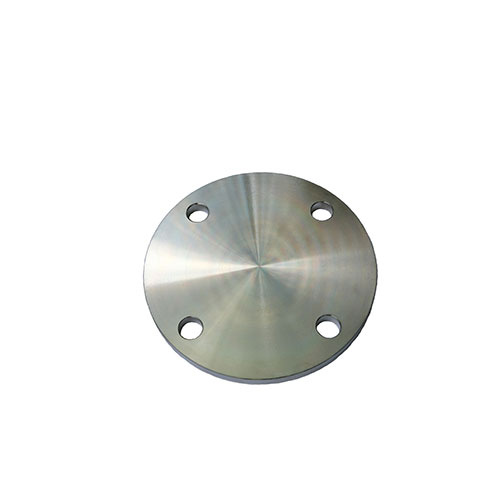

AAP Blind Flanges 316/316L SS Table-D

  • Blind flange has no centre bore.
  • Use to close the piping system.
  • Grade: 316 Stainless Steel
  • Standard: BS10 Table D
  • Pressure Rating: 6.89 Bar

Specifications

  • AIMS SKU A0080933
  • Brand AAP
  • Model Number SSFBD316X25
  • Pipe Size (inch) 10

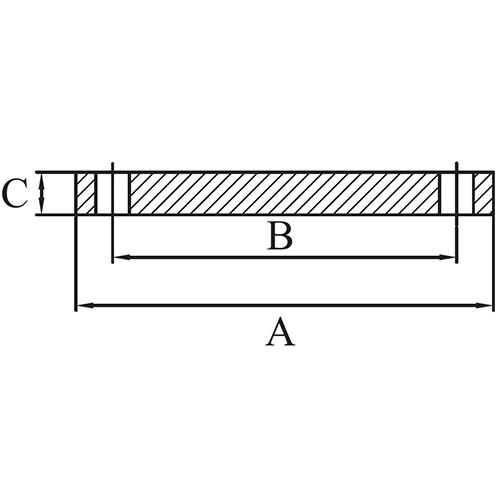

  • Outer Diameter (A) mm 406
  • Pipe Size (mm) 250
  • Holes Diameter 22
  • No. Of Holes 8
  • Approx. Kg/pc 16.14
  • Thickness 16
  • Circle Diameter (B) 356
  • Bolt Size M20
  • Type Blind Flange
  • Fitting Material 316 Stainless Steel
SKU: A0080933

AAP10", 250mm Blind Flanges 316/316L SS Table-D SSFBD316X25

AAP - Blind Flange

$685.97
RRP $768.28
SAVE $82.31 (11%)
