AAP Weld Neck Flanges

Specification:

  • ANSI B16.5 - Pipe Flanges and Flanged Fittings (American)
  • Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction
  • Marking: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard

About Forged Steel Flanges:

  • Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature, and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
  • The manufacturing method involves the hot forging of suitable steels prior to the final machining

Specifications

  • AIMS SKU A0078868
  • Brand AAP
  • Model Number PFW50X
  • Pipe Size (inch) 2"
  • Approx. Weight kg/pc 2.7

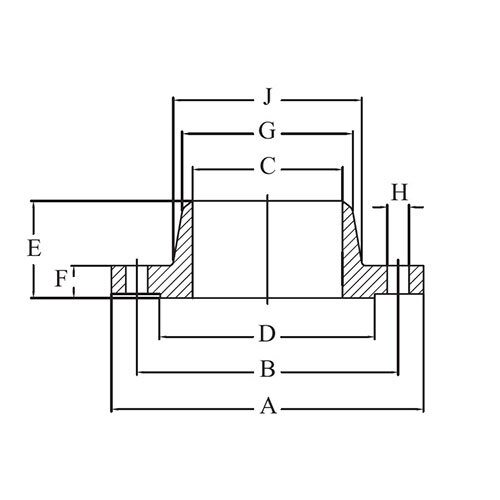

  • Flange Outside Diameter (A) 152.5
  • Flange Thickness (F) 19.1
  • Flange Raised Face Diameter (D) 92
  • Flange Raised Faced Thickness 1.6
  • Drilling Bolt Circle Diameter (B) 120.6
  • Drilling Holes Diameter (H) 20
  • Drilling No. Of Holes 4
  • Drilling Bolt Size 5/8"
  • Hub Diameter (J) 77.8
  • Bore Slip-on Socket Length (C) 49.3
  • Weld Neck Length (E) 63.6
  • Hub Diameter at Bevel (G) 60.5
  • Type Weld Neck Flange
  • Fitting Schedule/class C150
SKU: A0078868

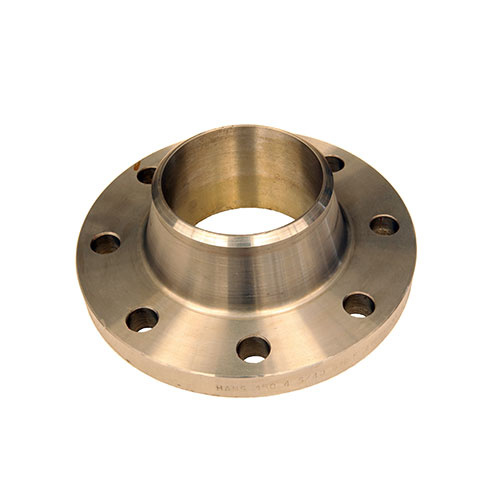

AAP 2" Weld Neck Flange XS ANSI B16.5 C150 PFW50X

AAP - Weld Neck flange

$41.99
RRP $90.43
SAVE $48.44 (54%)
