AAP Weld Neck Flange ANSI B16.5 C600

Description

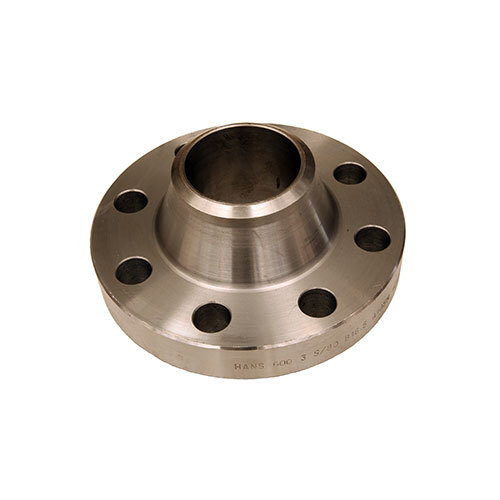

AAPWeld Neck Flanges

Specification:

ANSI B16.5 - Pipe Flanges and Flanged Fittings (American)
Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction
Marking: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard

About Forged Steel Flanges:

Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature, and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
The manufacturing method involves the hot forging of suitable steels prior to the final machining

Specifications

AIMS SKU A0078982

Brand AAP

Model Number P6FW25X

Pipe Size (inch) 1"

Approx. Weight kg/pc 1.8

Flange Outside Diameter (A) 123.8

Flange Thickness (F) 23.8

Flange Raised Face Diameter (D) 50.9

Flange Raised Faced Thickness 6.3

Drilling Bolt Circle Diameter (B) 88.9

Drilling Holes Diameter (H) 20

Drilling No. Of Holes 4

Drilling Bolt Size 5/8"

Hub Diameter (J) 54

Slip-on Length (C) 68.2

Type Weld Neck Flange
Fitting Schedule/class C600
