AAP Stainless Gate Valve-Retainer Type Table-E

Description

Stainless Steel Knife Gate Valve Retainer Type (Table E)

Stainless Steel Knife gate valve is designed for inline service. Should the valve be used on a dead-end application asupport flange should be used.
AAP Can also supply the following seats - EPDM, PTFE, Stainless Steel Metal Seats, Viton, Ceramic and Polyurethane

Specifications
Valve Design	MSS SP-81
Flange	AS2129
Cold Working Pressure	1034kPa
MAX Working Temperature	100°C

Material List
PART	MATERIAL
Body	CF8M
Gland Packing	Braided PTFE
Gland	CF8M
Gate	316 Stainless Steel
Yoke	CF8
Hand Wheel	Cast Steel
Stem	304 Stainless Steel
Clevis	CF8
Grease Nipple	304 Stainless Steel
Bearing Housing	CF8
Retainer	CF8M
Retainer Screw	316 Stainless Steel
Seat	NBR

Specifications

AIMS SKU A0081351

Brand AAP

Model Number VKGRS50

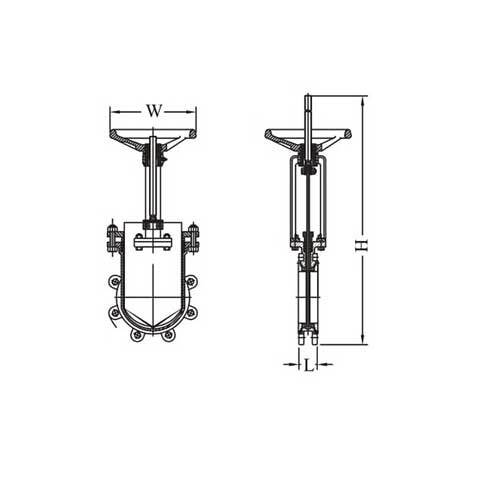

Valve Length 47

Bolt Size M16

Pipe Size (inch) 2

Valve Handle Length (W) 203

Approx. Kg/pc 10

Number of Bolts 4

Height of handle from Valve (H) 413

Pipe Size (mm) 50

Type Stainless Steel Gate Valve
Fitting Material Finish Stainless Steel
