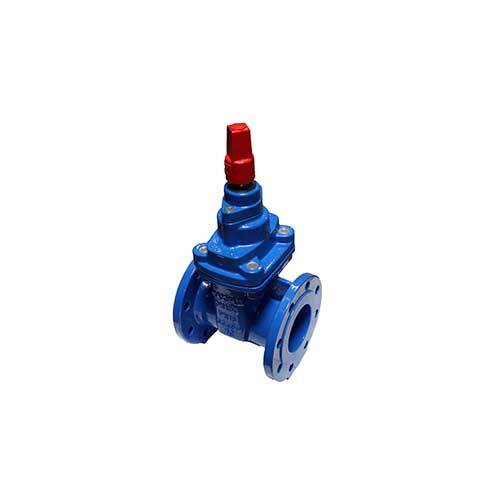

AAP Resilient Gate Valve Spindle Cap Table-C
Materials
- Body - Ductile Iron (epoxy resin coating)
- Bonnet - Ductile Iron (epoxy resin coating)
- Wedge - Ductile Iron (bonded Rubber)
- Stem - 431 Stainless Steel
- O'Ring - EPDM
- Seal Bushing - EPDM
About Resilient Seat Gate Valves
- certified to AS/NZS:2638:2011
- AAP Standards Mark License - SMKP20171.4 This license covers DN80-DN600 valves
- certified to AS4020 - Suitable for contact with drinking water WSAA Product Appraisal Report 11/26
- Sydney Water Approval - No. 200808
- Yarra Valley Water Authorisation - Ref. YVW 12/11 City West Water CWW 12/596
- South East Water SEW 12/0117
- Hunter Water Corporation HWC 2012-35/49/1
- The Valves are distinguished by Whitecap for Anticlockwise and Redcap for Clockwise
- For buried applications is recommended installation complies with Australian Standard - AS/NZS 2566.2
- N.B DN50 and DN65 are not covered by AS2638.2
Specifications
Specifications
Specifications
- Max Working Temperature - 40°C
- Cold Working Pressure - 1600kPa
- Design - AS2638.2*
- flanged Drilling T/C - AS4087
- flanged Drilling T/E - AS2129
- Socket Ends - AS2280
- Coating Thickness - AS4158
Applications
Applications
Applications:
- Water, sewage and neutral liquid applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP Resilient Gate Valve Spindle Cap Table-C
AAP Resilient Gate Valve Spindle Cap Table-C
SKU: A0081386
Type: Resilient Gate Valve
- Wide Range
- Reliable Services
- Proven Trust
Available
The AAP Resilient Gate Valve Spindle Cap Table-C by AAP is a Resilient Gate Valve with a ductile iron body. It provides 1600kPa cold working pressure and is suitable for water applications.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
AAP Resilient Gate Valve Spindle Cap Table-C
Materials
- Body - Ductile Iron (epoxy resin coating)
- Bonnet - Ductile Iron (epoxy resin coating)
- Wedge - Ductile Iron (bonded Rubber)
- Stem - 431 Stainless Steel
- O'Ring - EPDM
- Seal Bushing - EPDM
About Resilient Seat Gate Valves
- certified to AS/NZS:2638:2011
- AAP Standards Mark License - SMKP20171.4 This license covers DN80-DN600 valves
- certified to AS4020 - Suitable for contact with drinking water WSAA Product Appraisal Report 11/26
- Sydney Water Approval - No. 200808
- Yarra Valley Water Authorisation - Ref. YVW 12/11 City West Water CWW 12/596
- South East Water SEW 12/0117
- Hunter Water Corporation HWC 2012-35/49/1
- The Valves are distinguished by Whitecap for Anticlockwise and Redcap for Clockwise
- For buried applications is recommended installation complies with Australian Standard - AS/NZS 2566.2
- N.B DN50 and DN65 are not covered by AS2638.2
Specifications
Specifications
Specifications
- Max Working Temperature - 40°C
- Cold Working Pressure - 1600kPa
- Design - AS2638.2*
- flanged Drilling T/C - AS4087
- flanged Drilling T/E - AS2129
- Socket Ends - AS2280
- Coating Thickness - AS4158
Applications
Applications
Applications:
- Water, sewage and neutral liquid applications
