Description

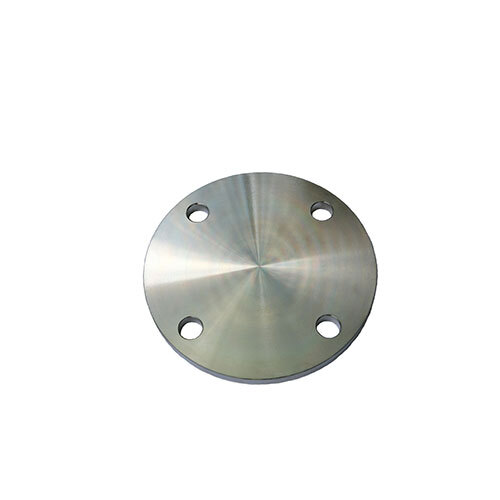

AAP Blind Flanges 316/316L SS Table-D

  • Blind flange has no centre bore.
  • Use to close the piping system.
  • Grade: 316 Stainless Steel
  • Standard: BS10 Table D
  • Pressure Rating: 6.89 Bar

Specifications

  • AIMS SKU A0080930
  • Brand AAP
  • Model Number SSFBD31694
  • Thickness 10.6
  • Holes Diameter 18
  • Pipe Size (inch) 4
  • Bolt Size M16
  • Approx. Kg/pc 3
  • Pipe Size (mm) 100

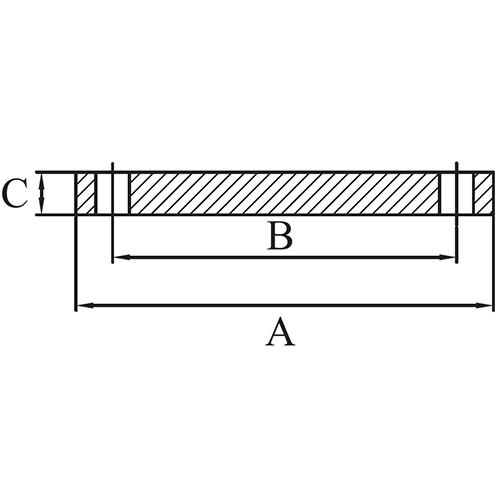

  • Circle Diameter (B) 178
  • No. Of Holes 4
  • Outer Diameter (A) mm 215
  • Type Blind Flange
  • Fitting Material 316 Stainless Steel
SKU: A0080930 On Sale

AAP 4", 100mm Blind Flanges 316/316L SS Table-D SSFBD31694

AAP - Blind Flange

$102.03
$120.04
