Description

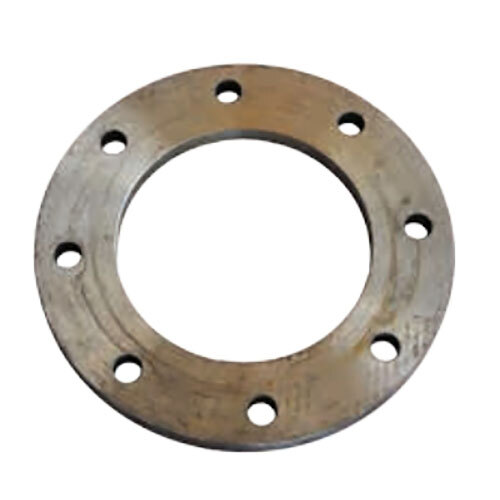

Plate Flat Faced Flange

  • Standard: AS4087 - Metallic Flanges for Waterworks Purposes (Australian)
  • Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard.

About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, lower-pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves fitting and machining from plate steel.

Specifications

  • AIMS SKU A0079124
  • Brand AAP
  • Model Number 4087SPN3598
  • Pipe Size (inch) 8"
  • Approx. Weight kg/pc 25.05

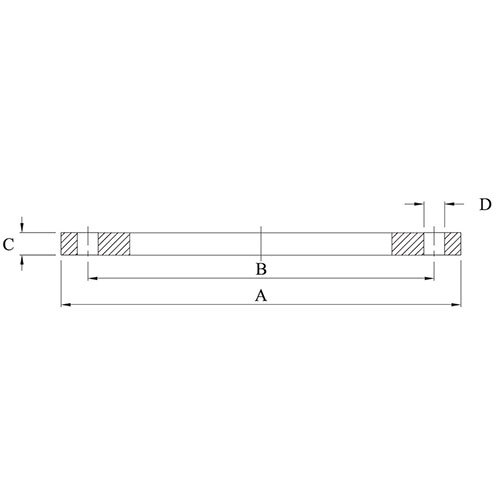

  • Flange Outside Diameter (A) 370
  • Drilling Bolt Circle Diameter (B) 324
  • Drilling No. Of Holes 12
  • Drilling Bolt Size M20
  • Type Plate Flat Faced Flange
SKU: A0079124 On Sale

AAP 8" Plate Flat Faced Flange 4087 PN35 - 4087 SPN3598

AAP - Plate Flat Faced flange

$127.59
$159.49
