Description

Blind Flanges

  • Standard: BS4504 - Circular Flanges for Pipe, Valves and Fittings (PN designated) - (now BS EN1092) (European)
  • APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard



About Forged Steel Flanges:

  • Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature, and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
  • The manufacturing method involves the hot forging of suitable steels prior to ?nal machining

Specifications

  • AIMS SKU A0079058
  • Brand AAP
  • Model Number SFPPN1680B
  • Pipe Size (inch) 3"
  • Approx. Weight kg/pc 4.3

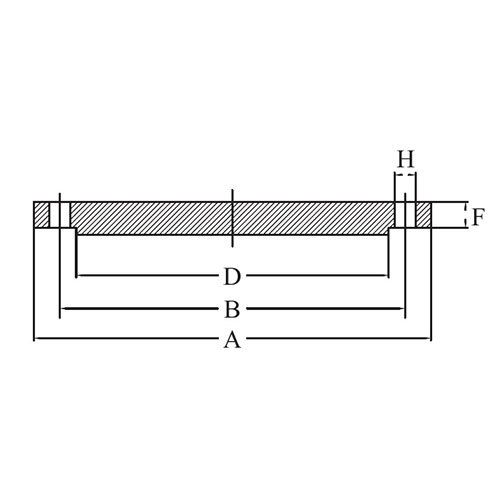

  • Flange Outside Diameter (A) 200
  • Flange Thickness (F) 20
  • Flange Raised Face Diameter (D) 138
  • Drilling Bolt Circle Diameter (B) 160
  • Drilling Holes Diameter (H) 18
  • Drilling No. Of Holes 8
  • Drilling Bolt Size M16
  • Raised Face Thickness 3
  • Type Blind Plate Flange
SKU: A0079058

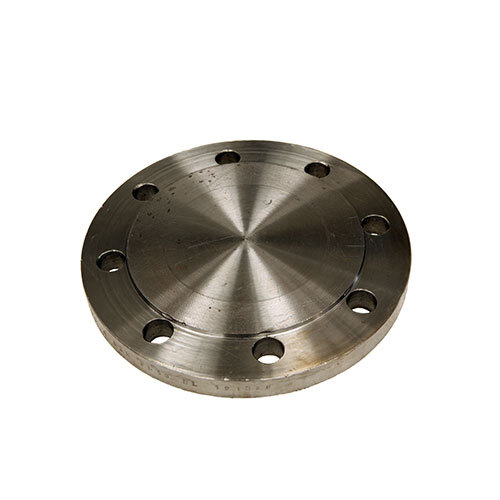

AAP 3" Blind Steel Plate Flange BS 4504 PN16 - SFPPN1680B

AAP - Blind Steel flange

$39.69
RRP $85.47
SAVE $45.78 (54%)
