Description

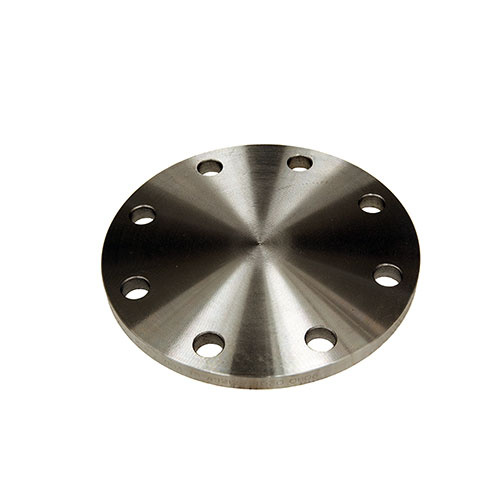

Blind Plate Flanges

  • Standard: AS2129 - Flanges for Pipes, Valves, and Fittings (Australian)
    • *AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes, bolt holes are slightly larger to give better clearance
  • APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard



About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, lower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves cFitting and machining from plate steel

Specifications

  • AIMS SKU A0078785
  • Brand AAP
  • Model Number SFBEX50
  • Pipe Size (inch) 20"
  • Approx. Weight kg/pc 114.75

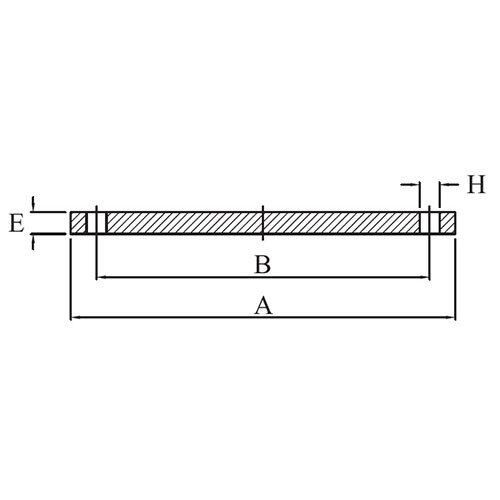

  • Flange Outside Diameter (A) 705
  • Flange Thickness (E) 38
  • Drilling Bolt Circle Diameter (B) 641
  • Drilling Holes Diameter (H) 26
  • Drilling No. Of Holes 16
  • Drilling Bolt Size M24
  • Type Blind Plate Flange
SKU: A0078785

AAP 20" Blind Steel Plate Flange Table-E SFBEX50

AAP - Blind Steel flange

$1,210.40
RRP $2,327.69
SAVE $1,117.29 (48%)
