***Size 36" & 48" are Special Manual Order. Due to variation in shipping costs, please contact Customer Service for a quote specific to your area or requirement.***

AAP Blind Flat-Faced Flange

  • Standard: AS4087 - Metallic Flanges for Waterworks Purposes (Australian).
  • Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • Marking: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard.

About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, lower-pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves cutting and machining from plate steel.

Specifications

  • AIMS SKU A0079112
  • Brand AAP
  • Model Number 4087BPN21X50
  • Pipe Size (inch) 20"
  • Approx. Weight kg/pc 152.13

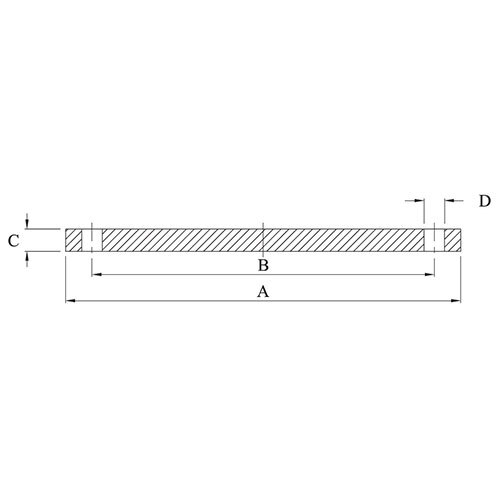

  • Flange Outside Diameter (A) 735
  • Drilling Bolt Circle Diameter (B) 673
  • Drilling No. Of Holes 24
  • Drilling Bolt Size M30
  • Type Blind Flat Faced Flange
SKU: A0079112

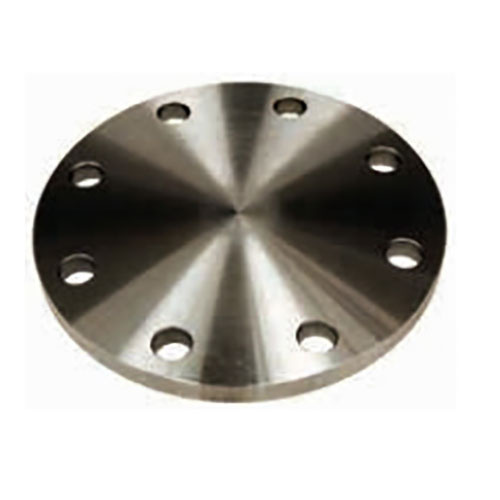

AAP 20" Blind Flat Faced Flange 4087 PN21 - 4087BPN21X50

AAP - Blind Flat Faced Flange

$1,449.99
RRP $3,123.05
SAVE $1,673.06 (54%)
