AAP 2" Slip-On Plate Steel Flange AS2129 Table-E SFPE50

Description

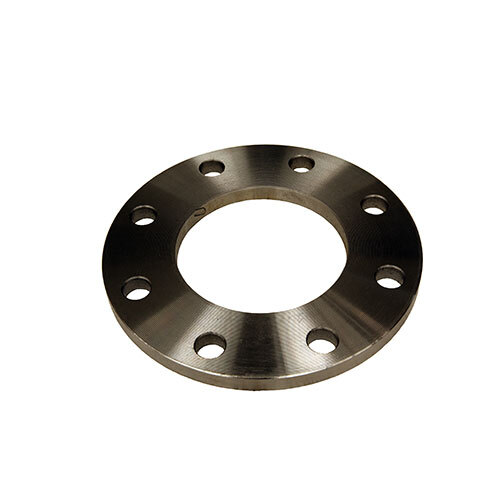

***Number of Holes may vary. The image is for illustration purposes only.***

AAP Slip-on Plate Flanges

Standard: AS2129 - Flanges for Pipes, Valves, and Fittings (Australian)
- *AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes, bolt holes are slightly larger to give better clearance.

Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.

Marking: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard.

About Plate Steel Flanges:

Plate flanges are mainly used for light-duty, flower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
The manufacturing method involves cutting and machining from plate steel.

Specifications

AIMS SKU A0078716

Brand AAP

Model Number SFPE50

Pipe Size (inch) 2"

Approx. Weight kg/pc 1.3

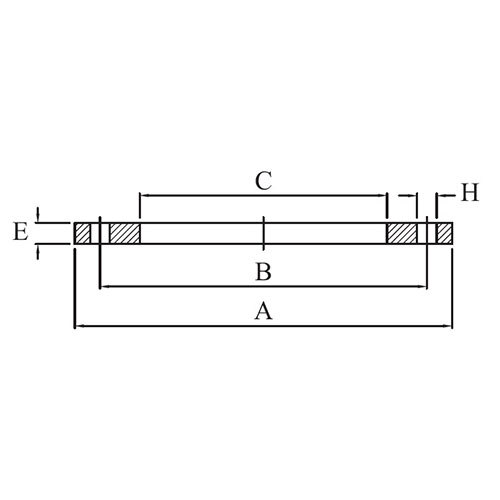

Flange Outside Diameter (A) 152

Flange Thickness (E) 12

Drilling Bolt Circle Diameter (B) 114

Drilling Holes Diameter (H) 18

Drilling No. Of Holes 4

Drilling Bolt Size M16

Bore Slip-on Socket Length (C) 62

Type Slip-on Weld Plate Flange
