Description

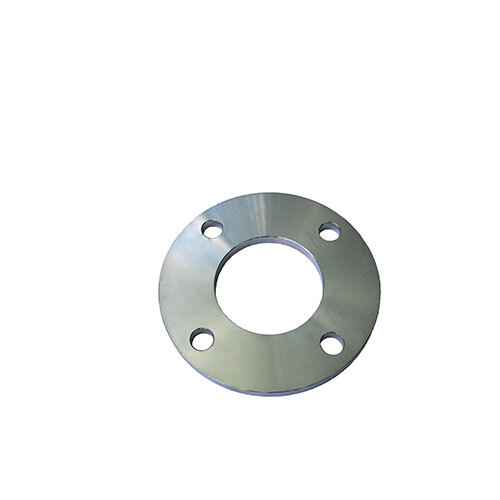

***Number of Holes may vary. The image is for illustration purposes only.***

AAP Slip On Flanges 316/316L SS 'Table E'

  • A Slip-On flange is used to connect two fillet welds.
  • Provide sufficient strength.
  • Prevents leakage.
  • Grade: 316 Stainless Steel.
  • Standard: BS10 Table E.
  • Pressure Rating: 13.87Bar.

Specifications

  • AIMS SKU A0080881
  • Brand AAP
  • Model Number SSFSE31632
  • Size 1 1/4"
  • Bolt Size M12
  • Number of holes 4
  • Hole Diameter 14
  • Approx Kg/pc 0.6

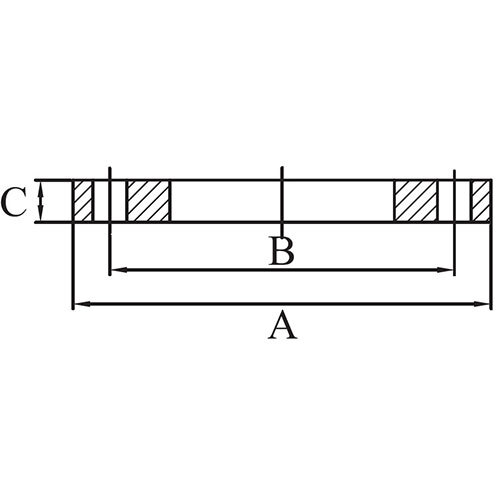

  • Dimension A (mm) 120
  • Dimension B (mm) 81
  • Dimension C (mm) 10.6
  • Size nb (mm) 32
  • Type Slip On Flange
  • Fitting Material 316 Stainless Steel
SKU: A0080881 On Sale

AAP 1-1/4" Slip On Flanges 316/316L Stainless Steel - SSFSE31632

Slip On Flange - AAP

$29.59
$36.09
