Specifications

AIMS SKU A0080966
Brand AAP
Model Number SSFB15031640
Pipe Size (inch) 1-1/2

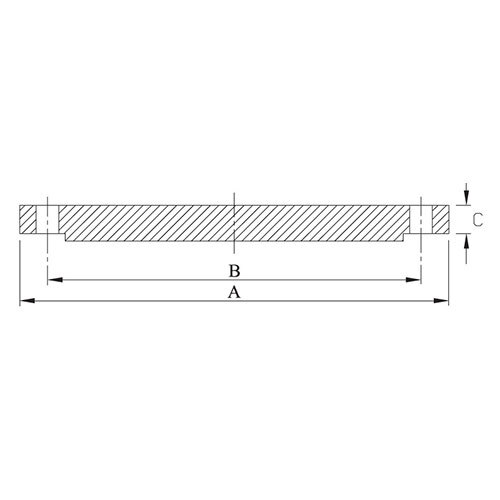

Outer Diameter (A) mm 127.1
Pipe Size (mm) 40
Holes Diameter 16
No. Of Holes 4
Approx. Kg/pc 1.8
Thickness 17.5
Circle Diameter (B) 98.4
Bolt Size 1/2

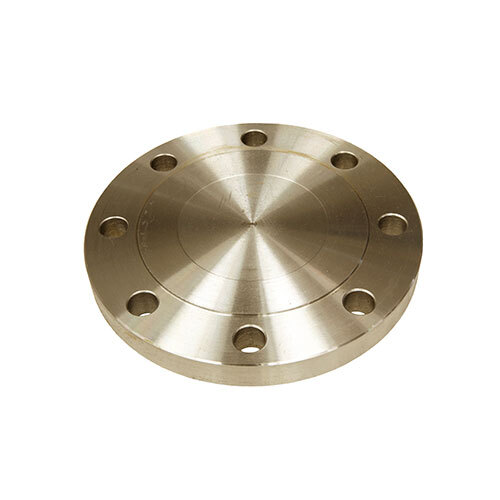

• Type Blind Flange
• Fitting Schedule/class C150
• Fitting Material 316 Stainless Steel
