32-H-100 Taper Lock Imperial Timing Pulley 32 Tooth 1" Wide Steel - Finer Power Transmissions

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

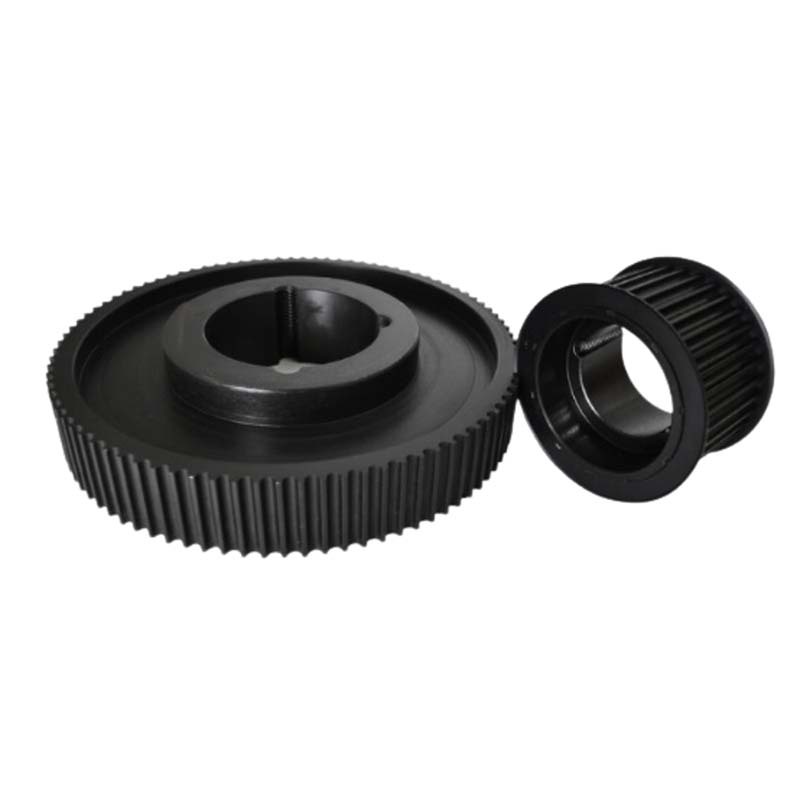

H100 Series Taper Lock Imperial Timing Belt Pulley

Imperial Classical Timing Pulley (Taper Lock).
1" Wide-Flanged.
Available in H Series, L Series, and XL.

Specifications

AIMS SKU A0196297

Number of Teeth 32

Weight (kg) 2.05

Max Bore 42

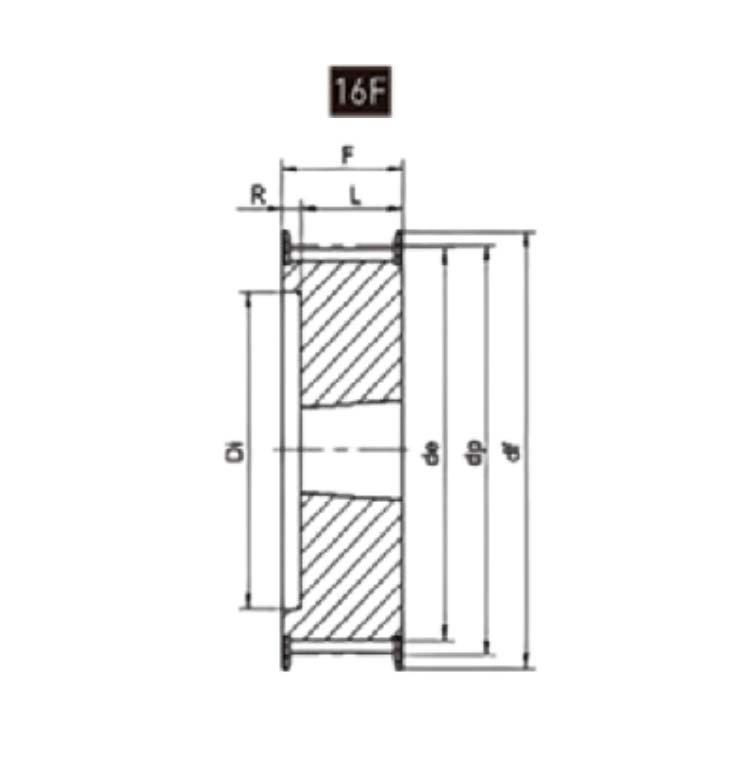

F 32

R 7

L 25

Flange (mm) 328

Bush 1610

de 127.99

dp 129.36

dm 90

Type (Timing Belt Pulley) 17F

Df 135

Di 106

Type Taper Lock Timing Pulley
Material Steel
