Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

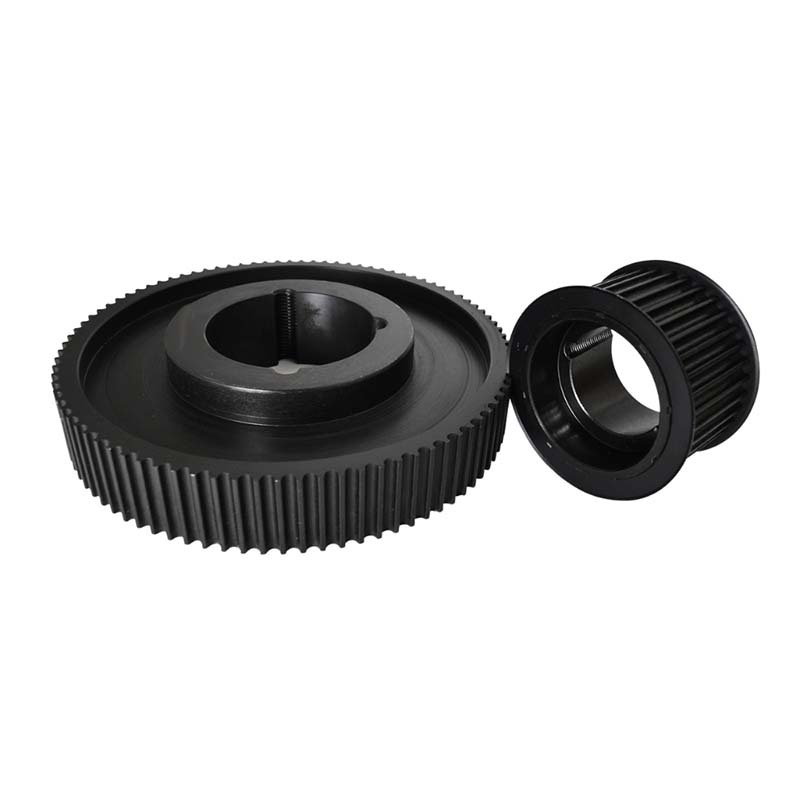

H150 Series Taper Lock Imperial Timing Belt Pulley

  • Imperial Classical Timing Pulley (Taper Lock).
  • 1-1/2" Wide-Flanged.
  • Available in H Series, L Series, and XL.

Specifications

  • AIMS SKU A0196307
  • Number of Teeth 15
  • Di 44
  • dp 60.64
  • Flange (mm) 310
  • F 45
  • Df 66
  • de 59.27
  • L 22
  • Max Bore 28
  • Type (Timing Belt Pulley) 16F
  • Bush 1108
  • R 23
  • Weight (kg) 0.51
  • Type Taper Lock Timing Pulley
  • Material Steel
SKU: A0196307

15-H-150 Taper Lock Imperial Timing Pulley 15 Tooth 1-1/2" Wide Steel

H150 Series Taper Lock Imperial Timing Belt Pulley
