Description

** This belt can be ordered in a custom width of your choice. Please contact us for a quotation. **

Descriptions

  • Due to its double and directly opposite teeth, PowerGrip® Twin Power® synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility

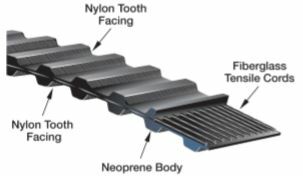

Construction

  • Similar in construction to PowerGrip® classical synchronous belts: strong tensile member, precision formed elastomeric teeth and body
  • Neoprene body provide protection against grime, grease, oil and moisture
  • Fibreglass tensile cords
  • Tough nylon facing protects and reinfonces the tooth surface.

Advantages

  • Twin Power® can transmit up to 100% of its maximum rated load from either side of the belt; alternatively, it can transmit a load on both sides – provided the sum of the loads does not exceed the maximum capacity
  • Non-slip positive drive
  • Runs at low noise
  • Compact, light-weight, and cost e?ective drives
  • High tooth jump resistance
  • High efficiency positive drive
  • Maintenance free
  • No lubrication

Temperature Range

  • Range: -30°C to +100°C

Specifications

  • AIMS SKU A0026189
  • Brand Gates
  • Model Number 9246-2109
  • Barcode Number 72053614916
  • Timing Belt Code TP300L050
  • Length (mm) 300
  • Belt Width (mm) 12.7
  • Number of Teeth 80
  • Teeth Depth (mm) 1.91
  • Pitch (mm) 9.53
  • Depth (mm) 4.58
  • Type Twin Power Belt - Double Sided Synch
  • System of Measurement Metric
  • Material Fibreglass Cord
  • Section TP
  • Series Gates PowerGrip HTD Timing Belt
SKU: A0026189

Gates TP300L050 (9246-2109) Twin Power Double Sided Synchronous Belt

Twin Power Belt - Double Sided - Synchronous

$54.96
RRP $88.63
SAVE $33.67 (38%)
