30-H-100 Taper Lock Imperial Timing Pulley 30 Tooth 1" Wide Steel - Finer Power Transmissions

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

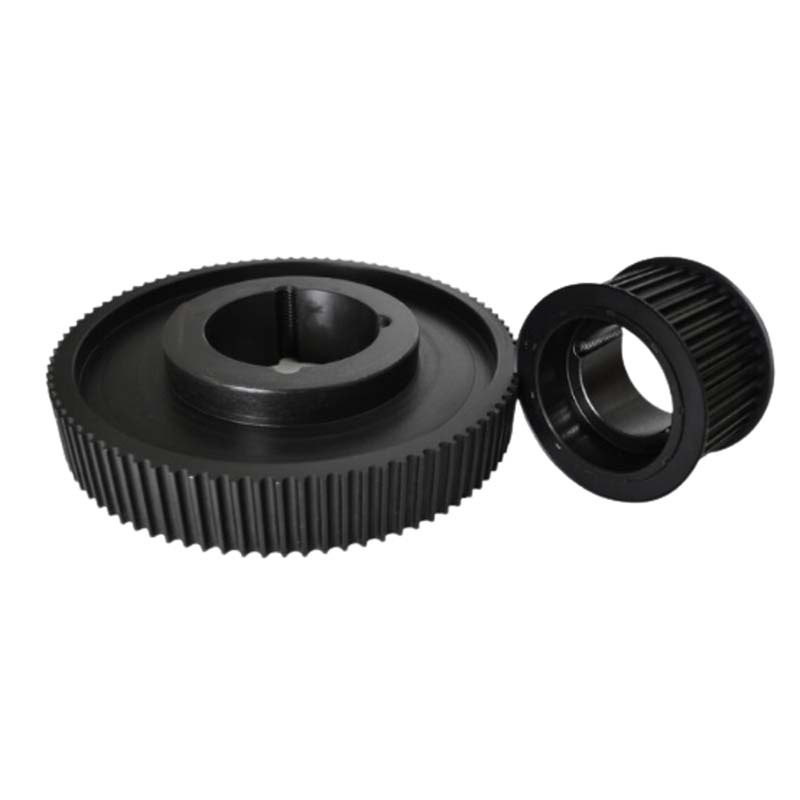

H100 Series Taper Lock Imperial Timing Belt Pulley

Imperial Classical Timing Pulley (Taper Lock).
1" Wide-Flanged.
Available in H Series, L Series, and XL.

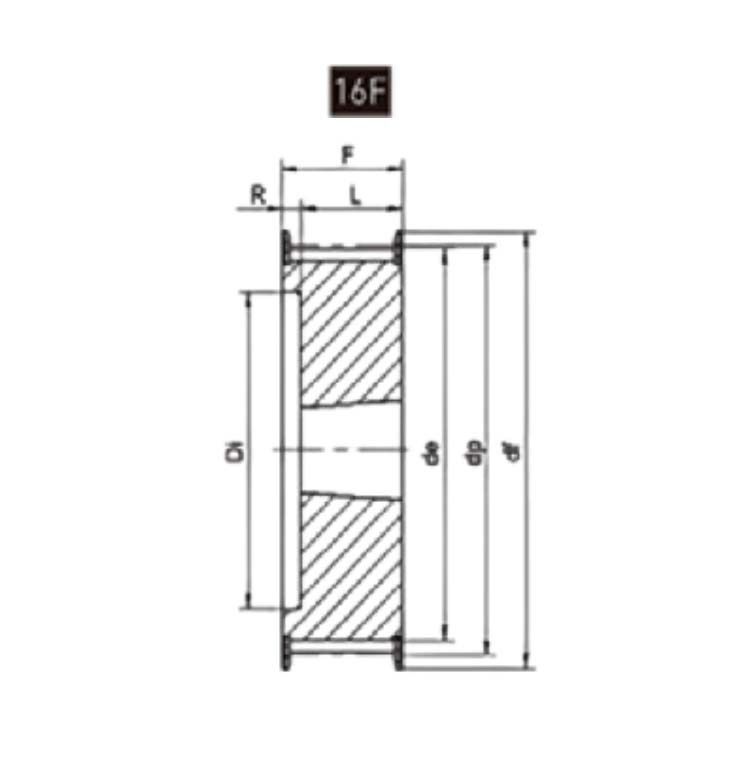

Specifications

AIMS SKU A0196296

Number of Teeth 30

Weight (kg) 1.85

Max Bore 42

F 32

R 7

L 25

Flange (mm) 327

Bush 1610

de 119.9

dp 121.28

Type (Timing Belt Pulley) 16F

Df 127

Di 98

Type Taper Lock Timing Pulley
Material Steel

Calculate Shipping

Resources

Technical Data Sheet
