Description

B Section Pilot Bore V Pulley Aluminium (1 to 2 Grooves)

  • The V-pulley is disc-type with a cylindrical bore
  • The V-pulley has a fixed/finished bore and is supplied with a keyway
  • The V-pulley is applicable to keyed shaft types
  • The V-Pulley has a maximum peripheral speed of 1200 meters/min
  • To be used for light-duty applications

Construction

  • Material: Aluminium
  • Quality manufactured in Australia by Australian Pulley Co.
  • V-pulleys are available from stock in both pilot bore (1/2-in) and finished bore options (5/8-in, 3/4-in, and 1-in).
  • V-pulleys are available in both single and double groove types for use with A, B, & M- section V-Belts.
  • Refer to the product data sheet for other technical details.

Advantages/Features

  • Double-groove v-pulley is used to further increase the power transmission capacity.
  • The double-groove configuration distributes the torque across the v-belts and provides mechanical redundancy.
  • V-pulley dimensions are accurate as they are manufactured in CNC Machine shops and foundries.
  • V-pulley grooves grip the belts, helping to reduce slippage and maintain efficiency.
  • A grub screw is provided with the v-pulley which forces down on key steel and stops it from sliding out.
  • The keyway ensures an intimate fit along the axle to transfer torque between the components.

Specifications

  • AIMS SKU A0062577
  • PC Diameter (inch) 3
  • Bore (inch) 5/8
  • Number of Grooves 1
  • Keyway (inch) 3/16 x 3/32
  • PC Diameter (in mm) 76
  • Body Type Solid Body (Disc)
  • Type Pilot Bore V Pulley,Bore with Keyway V Pulley
  • System of Measurement Imperial
  • Material Aluminium
  • Section B
SKU: A0062577

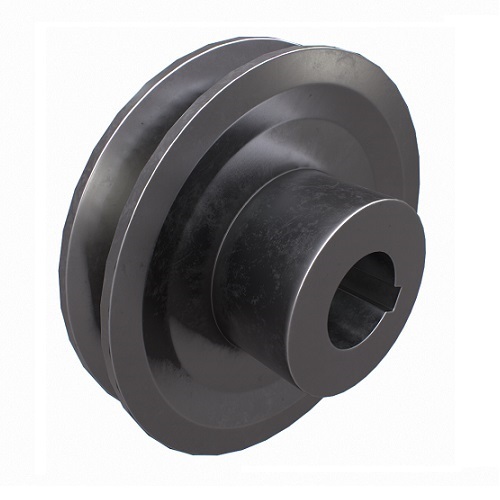

1B V Belt Pulley 3" Single Groove B Section 5/8" Bore, 3/16" Keyway - Al

Bored & Keyed Single Groove B Section Aluminium Pulley

$26.08
5/5 based on 1 review.
