Description

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0097950
  • Brand TechTop
  • Model Number TA2A0183TML
  • Poles 2
  • Mounting Position B3
  • Base RPM 2710
  • Shaft Diameter 11 mm
  • Mounting Type Foot-Mounted
  • IEC Frame Size 63 A
  • Group Code Techtop-TML-0.18kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.18
  • Rated Load (HP) 1/4
  • AC Phase Single Phase
  • Series Techtop TML
  • Current Type AC
SKU: A0097950

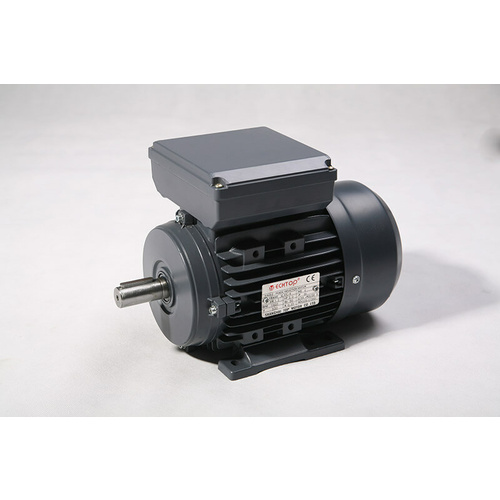

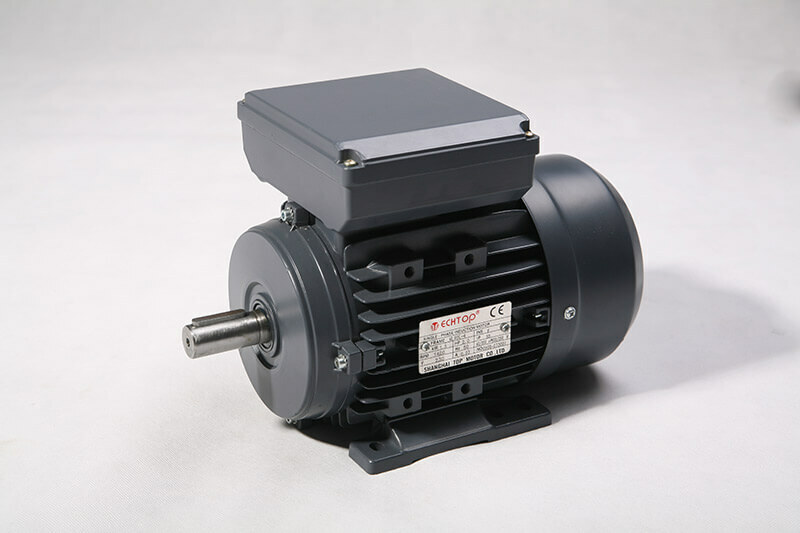

TechTop 0.18kW 1/4 HP Motor 240V 1 Phase 2 Pole, 2710 RPM, Foot Mount TA2A0183TML

240V Single Phase Cap Start/Cap Run Motor (TA2A0183TML)

$162.29
