Yoke G80 Shank Self Locking Hook 16mm - 113416

Description

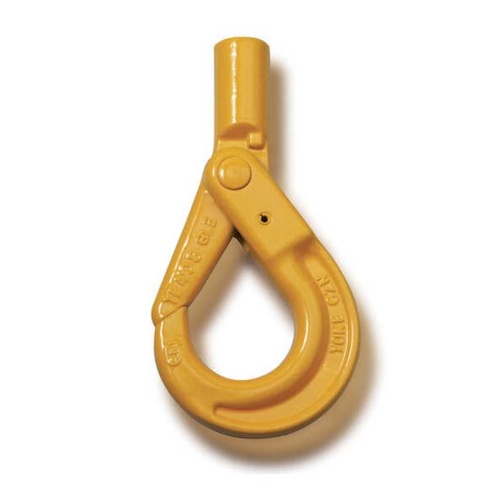

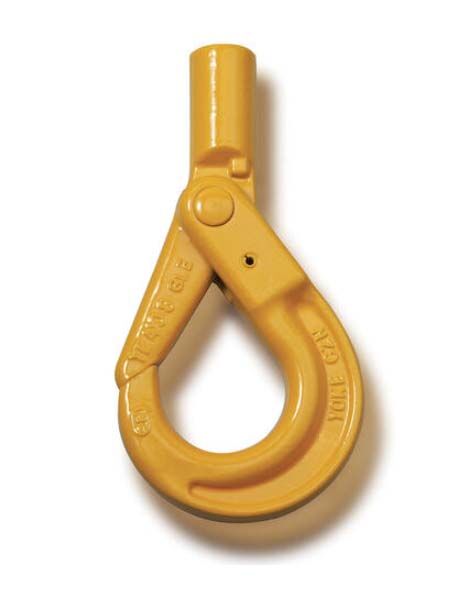

Yoke G80 Shank Self Locking Hook

G80.
Design factor 4:1.
**d min =the smallest shank dimension after machining.
Note: After machining shank, proof loading must be carried out.

Specifications

AIMS SKU A0208682

Brand Yoke

Model Number 113416

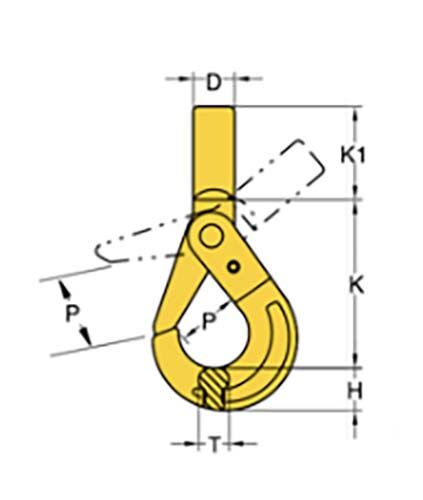

Size (mm) 16

Dimension D (mm) 37

Dimension H (mm) 49

WLL 8 T

Dimension K (mm) 204

Dimension P (mm) 61

Dimension T (mm) 36

Dimension d min** (mm) 25

Dimension K1 (mm) 75

Type Shank Self Locking Hook
Grade G80
