Description

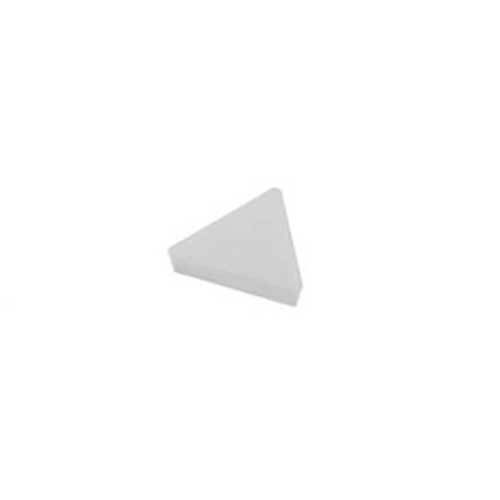

Turning Insert TP3501 Grade (TPUN)

  • TP3501 grade.
  • T, Insert Shape Code (SC).
  • 16, Insert Seat Size Code (SSC).

About TP3501 Grade

  • Carbide CVD.
  • Duratomic® technology coated grade.
  • Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0121998
  • Brand Seco
  • Model Number 03096649
  • Barcode Number 96649030001006
  • Designation TPUN160304,TP3501

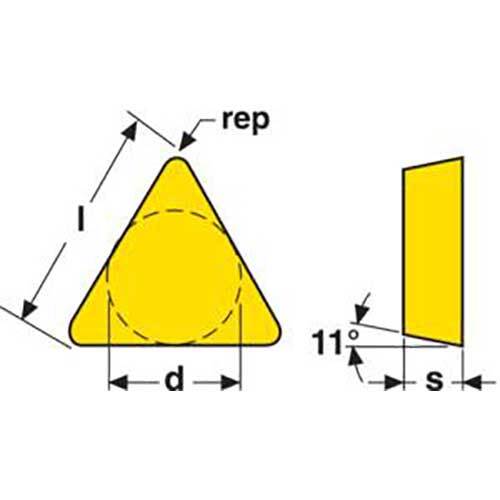

  • Clearance Angle Major (an) Deg 11.0 deg
  • Insert Seat Size Code (SSC) 16
  • Cutting Edge Effective Length (LE) mm 15.5
  • Grade Type Carbide CVD
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Inscribed Circle Diameter (IC) mm 9.53
  • Corner Radius (RE) mm 0.4
  • Insert Hand (IH) Neutral
  • Insert Included Angle (epsr) Deg 60.0 deg

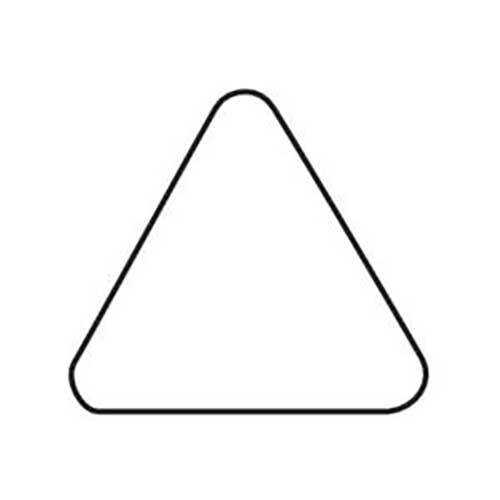

  • Insert Shape Code (SC) T
  • Insert Thickness (S) mm 3.18
  • Cutting Edge Count (CEDC) 3
  • Type Turning Insert
  • Insert Shape Code (SC) T
  • Insert Hand (IH) Neutral
  • Grade TP3501
SKU: A0121998

Seco General Turning Insert 0.4 x 3.18 x 16.5mm TP3501 Grade Neutral (TPUN) TPUN160304,TP3501 Pack of 10

Turning Insert TP3501 Grade (TPUN)

$178.28
