Description

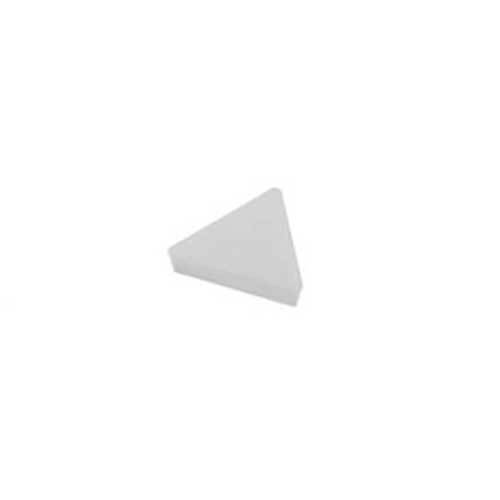

Turning Insert TP2501 Grade (TPUN)

  • TP2501 grade.
  • T, Insert Shape Code (SC).
  • 16, Insert Seat Size Code (SSC).

About TP2501 Grade

  • Carbide CVD.
  • Duratomic® technology coated grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0121991
  • Brand Seco
  • Model Number 02960706
  • Barcode Number 60706029001005
  • Designation TPUN160304,TP2501

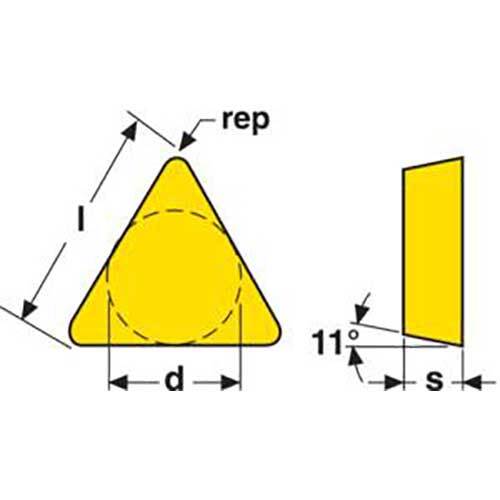

  • Clearance Angle Major (an) Deg 11.0 deg
  • Insert Seat Size Code (SSC) 16
  • Cutting Edge Effective Length (LE) mm 16.1
  • Grade Type Carbide CVD
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Inscribed Circle Diameter (IC) mm 9.52
  • Corner Radius (RE) mm 0.4
  • Insert Hand (IH) Neutral
  • Insert Included Angle (epsr) Deg 60.0 deg

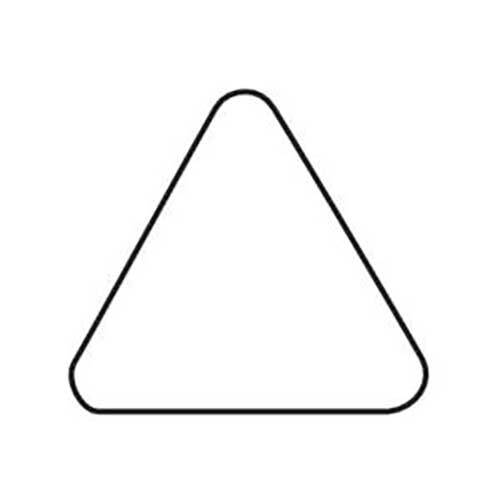

  • Insert Shape Code (SC) T
  • Insert Thickness (S) mm 3.18
  • Cutting Edge Count (CEDC) 3
  • Type Turning Insert
  • Insert Shape Code (SC) T
  • Insert Hand (IH) Neutral
  • Grade TP2501
SKU: A0121991

Seco General Turning Insert 0.4 x 3.18 x 16.5mm TP2501 Grade Neutral (TPUN) TPUN160304,TP2501 Pack of 10

Turning Insert TP2501 Grade (TPUN)

$178.28
