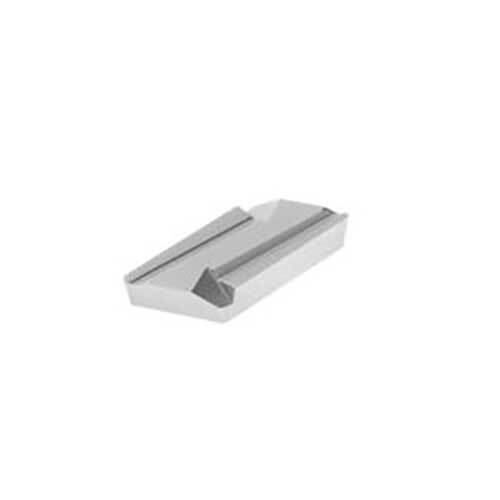

Turning Insert TP2501 Grade (KNUX)

  • TP2501 grade.
  • K, Insert Shape Code (SC).
  • 16, Insert Seat Size Code (SSC).

About TP2501 Grade

  • Carbide CVD.
  • Duratomic® technology coated grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0121969
  • Brand Seco
  • Model Number 02960816
  • Barcode Number 60816029001001
  • Designation KNUX160405L-11,TP2501

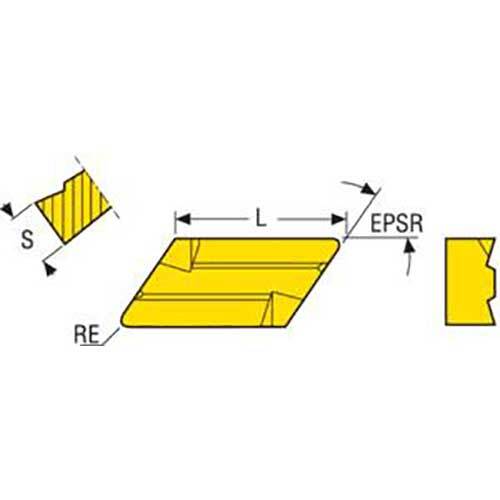

  • Insert Included Angle (epsr) Deg 55.0 deg
  • Insert Seat Size Code (SSC) 16
  • Cutting Edge Effective Length (LE) mm 18.5
  • Grade Type Carbide CVD
  • Clearance Angle Major (an) Deg 7.0 deg
  • Corner Radius (RE) mm 0.5
  • Insert Hand (IH) Left
  • Theoretical Cutting Edge Length (L) mm 19
  • Insert Shape Code (SC) K
  • Insert Thickness (S) mm 4.76
  • Cutting Edge Count (CEDC) 2
  • Type Turning Insert
  • Insert Shape Code (SC) K
  • Insert Hand (IH) Left
  • Grade TP2501
SKU: A0121969

Seco General Turning Insert 0.5 x 4.76 x 19mm TP2501 Grade Left (KNUX) KNUX160405L-11,TP2501 Pack of 10
