Description

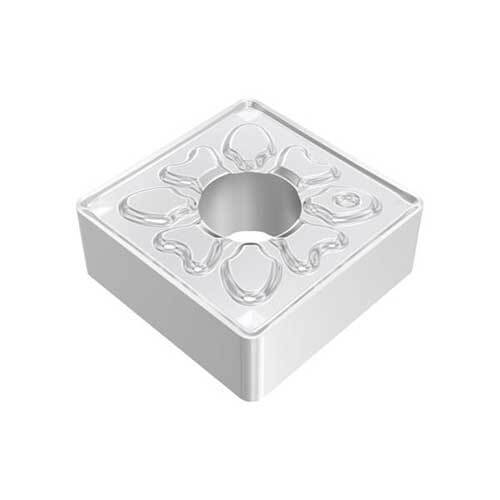

Turning Insert SNMG Insert Style - MF4 Grade TM2501

TM2501 Insert Grade

Duratomic® grade.
A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

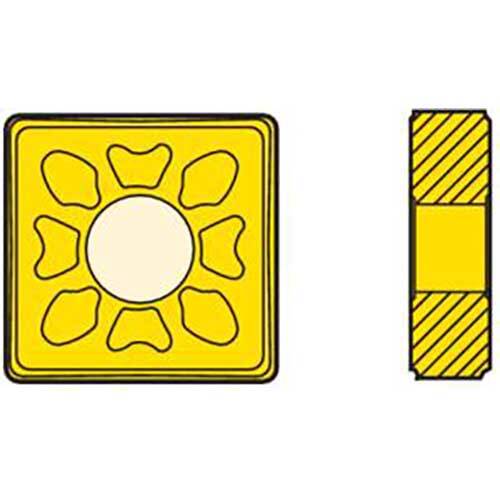

MF4 Chipbreaker Programme

Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0158426

Brand Seco

Model Number 03273950

Net Weight (kg) 0.009

Designation SNMG120412-MF4 TM2501

Chip Breaker Manufacturers Designation (CBMD) MF4

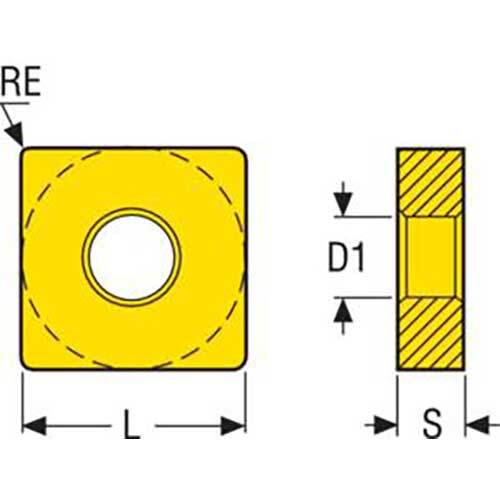

Fixing Hole Diameter (d1) Mm 5.2

Corner Radius (RE) mm 1.2

Insert Hand (IH) Neutral

Clearance Angle Major (an) Deg 0.0 deg

Insert Thickness (S) mm 4.76

Insert Included Angle (EPSR) 90.0 deg

Insert Seat Size Code (SSC) mm 12

Theoretical Cutting Edge Length (L) mm 12.7

Inscribed Circle Diameter (IC) mm 12.7

Cutting Edge Effective Length (LE) mm 11.51

Cutting Edge Count (CEDC) 8
