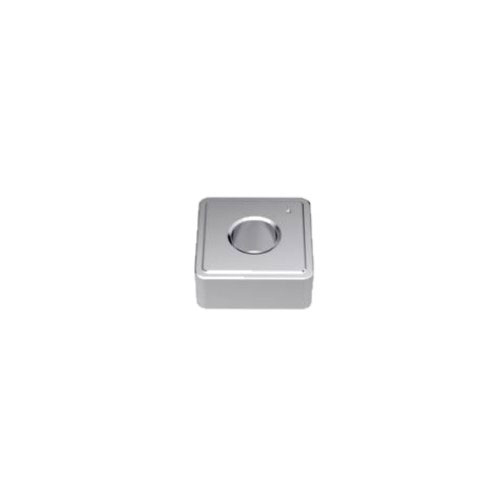

Turning Insert SNMA Insert Style - MR9 Grade TK0501

• S shape code.
• A insert type, with a hole, no chipbreaker.
• TK0501 insert grade.

TK0501 Insert Grade

• Duratomic® grade.
• An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MR9 Chipbreaker Programme

• The strongest chipbreaker intended for cast iron.
• The negative chamfers makes it very suitable for high feeds in interrupted cuts and still with very reliable action in cast irons.
• Intended machining range: f = 0,2-1,0 mm/rev ap = 1,0-12mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
