Description

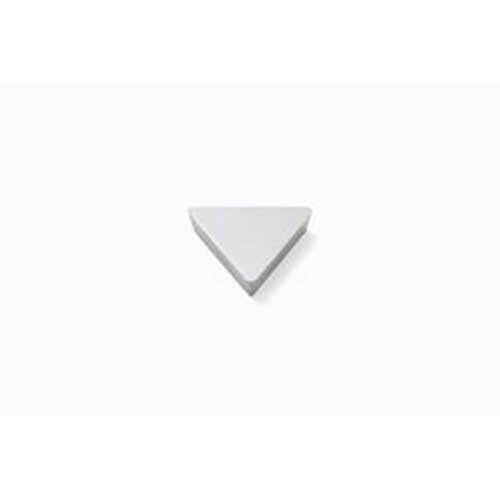

Turning Insert HX Grade (TPUN)

  • HX grade.

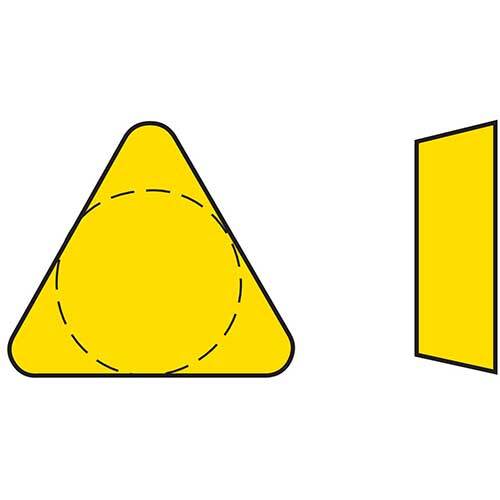

  • T, Insert Shape Code (SC).
  • 11, Insert Seat Size Code (SSC).

About HX Grade

  • Carbide Uncoated.
  • A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0121947
  • Brand Seco
  • Model Number 74010717
  • Barcode Number 10717740001002
  • Designation TPUN160304,HX

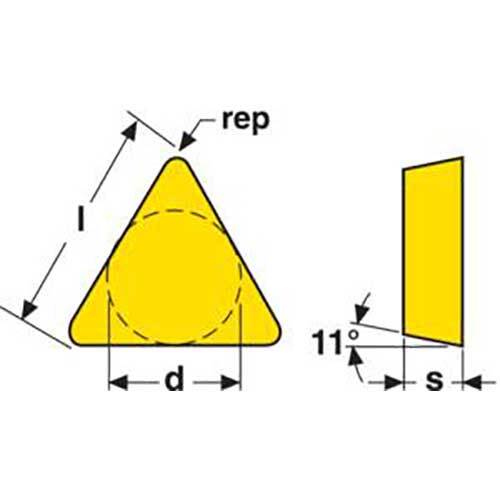

  • Clearance Angle Major (an) Deg 11.0 deg
  • Insert Seat Size Code (SSC) 16
  • Cutting Edge Effective Length (LE) mm 16.1
  • Grade Type Carbide Uncoated
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Inscribed Circle Diameter (IC) mm 9.52
  • Corner Radius (RE) mm 0.4
  • Insert Hand (IH) Neutral
  • Insert Included Angle (epsr) Deg 60.0 deg

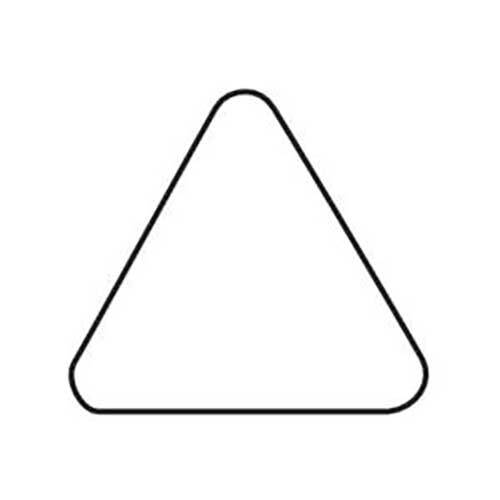

  • Insert Shape Code (SC) T
  • Insert Thickness (S) mm 3.18
  • Cutting Edge Count (CEDC) 3
  • Type Turning Insert
  • Insert Shape Code (SC) T
  • Insert Hand (IH) Neutral
  • Grade HX
SKU: A0121947

Seco General Turning Insert 0.4 x 3.18 x 16.5mm HX Grade Neutral (TPUN) TPUN160304,HX Pack of 10

Turning Insert HX Grade (TPUN)

$143.00
