Description

Turning Insert HX Grade (SPUN)

  • HX grade.
  • S, Insert Shape Code (SC).
  • 9, Insert Seat Size Code (SSC).

About HX Grade

  • Carbide Uncoated.
  • A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0121941
  • Brand Seco
  • Model Number 74010679
  • Barcode Number 10679740001003
  • Designation SPUN090308,HX

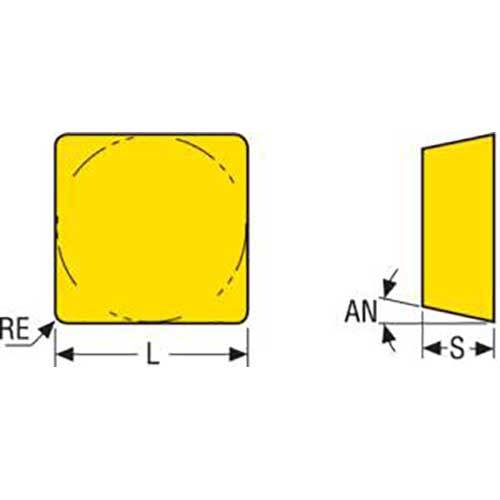

  • Clearance Angle Major (an) Deg 11.0 deg
  • Insert Seat Size Code (SSC) 9
  • Cutting Edge Effective Length (LE) mm 8.72
  • Grade Type Carbide Uncoated
  • Theoretical Cutting Edge Length (L) mm 9.52
  • Inscribed Circle Diameter (IC) mm 9.52
  • Corner Radius (RE) mm 0.8
  • Insert Hand (IH) Neutral
  • Insert Included Angle (epsr) Deg 90.0 deg

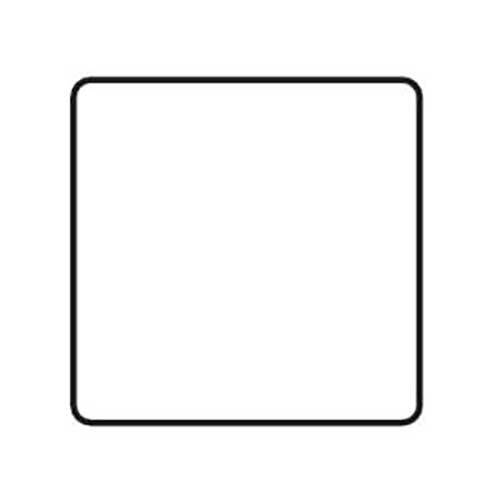

  • Insert Shape Code (SC) S
  • Insert Thickness (S) mm 3.18
  • Cutting Edge Count (CEDC) 4
  • Type Turning Insert
  • Insert Shape Code (SC) S
  • Insert Hand (IH) Neutral
  • Grade HX
SKU: A0121941

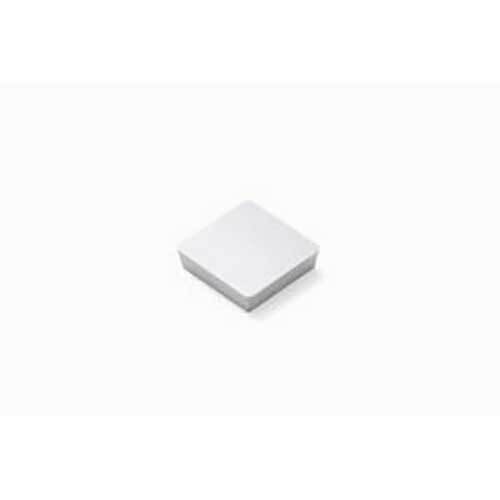

Seco General Turning Insert 0.8 x 3.18 x 9.52mm HX Grade Neutral (SPUN) SPUN090308,HX Pack of 10

Turning Insert HX Grade (SPUN)

$114.40
