Description

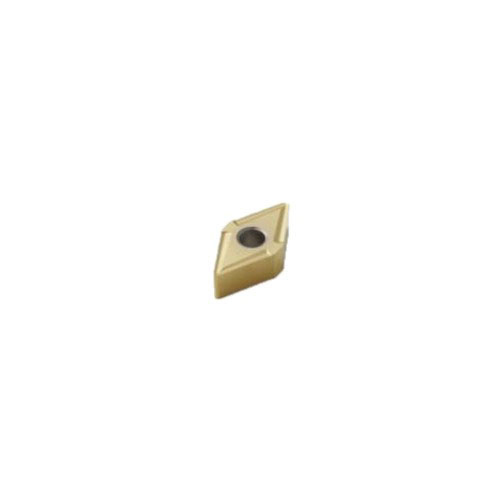

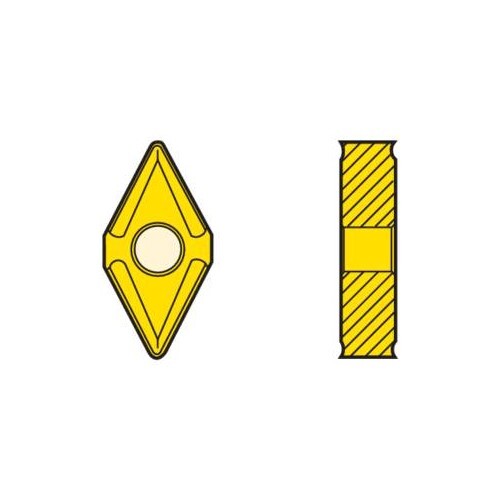

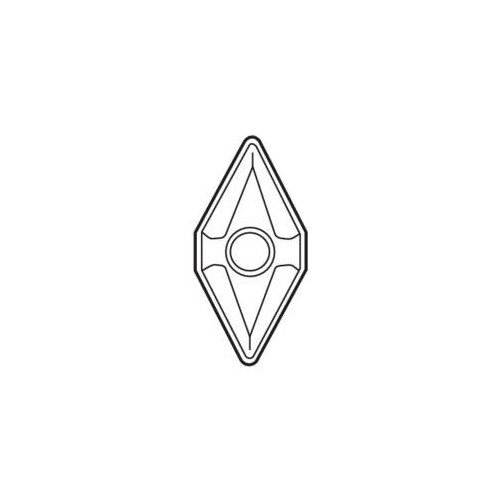

Turning Insert DNMG Insert Style - MR3 Grade CP500

  • D shape code.
  • G insert type, with hole and chip breaker on both faces.
  • CP500 insert grade.

CP500 Insert Grade

  • Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
  • Especially suitable in intermittent cuts.
  • (Ti, Al)N + TiN.

MR3 Chipbreaker Programme

  • Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
  • Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
  • Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116816
  • Brand Seco
  • Model Number 00098001
  • Barcode Number 98001000001009
  • Designation DNMG150608-MR3 CP500
  • Chipbreaker Programme MR3
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Shape Code (SC) D
  • Grade CP500
  • Theoretical Cutting Edge Length (L) mm 15.5
  • Clearance Angle Major (an) Deg 0.0 deg
  • Corner Radius (RE) mm 0.8
  • Insert Included Angle (epsr) Deg 55.0 deg
  • Inscribed Circle Diameter (IC) mm 12.7
  • Insert Thickness (S) mm 6.35
  • Type Turning Insert
  • Insert Style DNMG
  • Insert Grade Grade CP500
SKU: A0116816

Seco Turning Insert D Shape Code 6.35 x 0.8 x 12.7mm G Insert Type - MR3 Grade CP500 ± 0.13/± 0.05mm Tolerance DNMG150608-MR3,CP500 - Pack of 10

Turning Insert DNMG Insert Style - MR3 Grade CP500

$305.06
