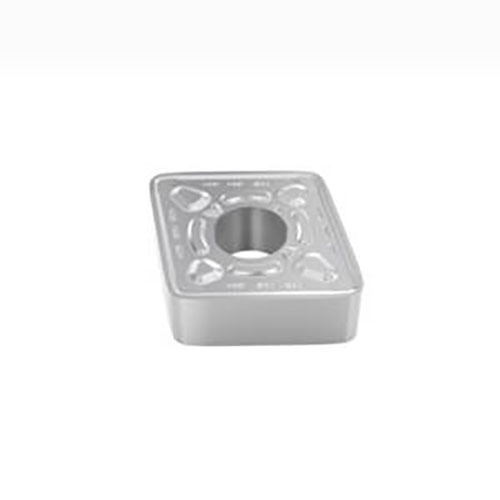

Turning Insert CNMG Insert Style - W-M6 Grade TP2501

• C shape code.
• G insert type, with hole and chipbreaker on both faces.
• TP2501 insert grade.

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-M6 Chipbreaker Programme

• Strong double-sided chipbreaker, intended for high-feed semi-roughing and roughing of steel.
• A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
• Indicative machining range: f = 0,3-1,0 mm/rev, ap = 1,0-7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
