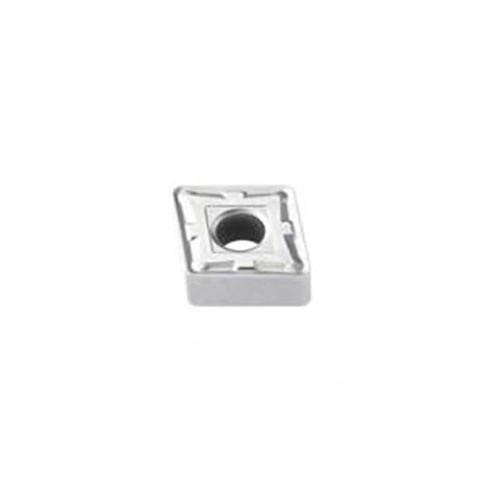

Turning Insert CNMG Insert Style - W-M3 Grade TP0501

• C shape code.
• G insert type, with hole and chipbreaker on both faces.
• TP0501 insert grade.

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-M3 Chipbreaker Programme

• Versatile chipbreaker for high feed finishing and medium-roughing machining of steel, stainless steel and cast iron.
• Operates in a wide application area.
• Gives a good surface finish even at high feeds.
• Indicative machining range: f = 0,2-0,9 mm/rev, ap = 0,5-6,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
