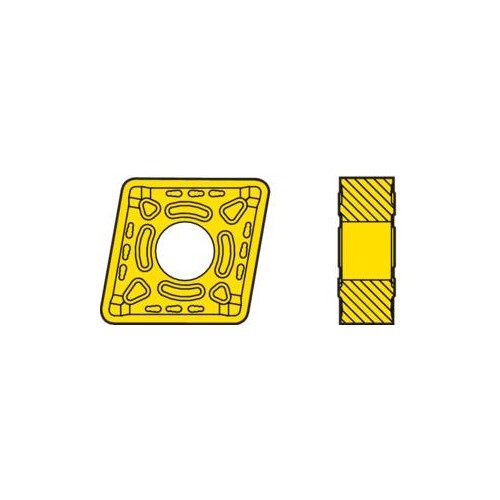

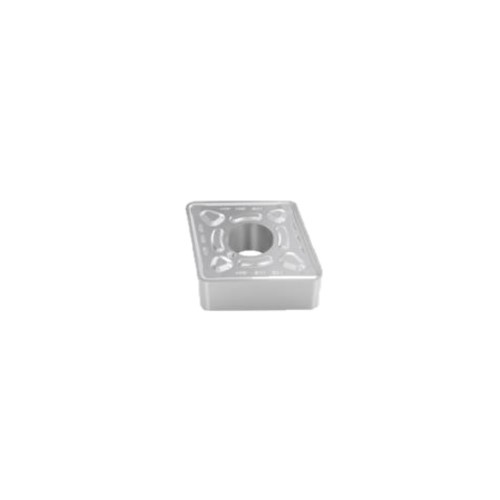

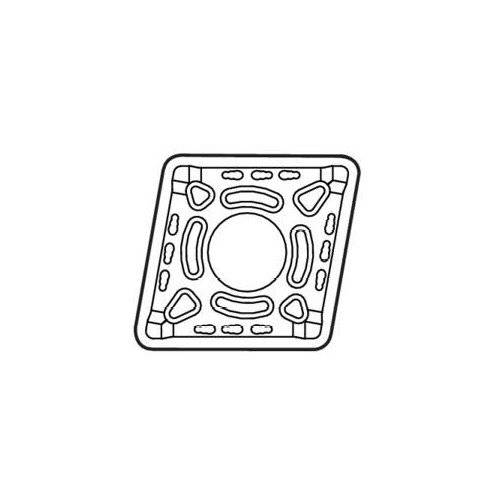

Turning Insert CNMG Insert Style - M6 Grade TK1501 4.76mm Insert Thickness (S)

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TK1501 insert grade.
• 4.76mm insert thickness (S).

TK1501 Insert Grade

• Duratomic® grade.
• A highly wear-resistant grade for cast irons in general as well as in steels.
• The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M6 Chipbreaker Programme

• Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel.
• A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
• Well suited also for machining of ferritic and martensitic stainless steels.
• Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
