Description

Trax 3/16" Air Hydraulic Riveter ARX-200NK

Specification:

Traction Power (kgf / lbf)	1,045 / 2,299 at (85psi)
Stroke Length (mm)	16
Net Weight (kg)	1.5
Working Air Pressure (psi)	78 - 85
Nosepiece	3/32" (2.4mm) 1/8" (3.2mm) 5/32" (4.0mm) 3/16" (4.8mm)
Width x Height(mm)	165 x 270
Air Consumption (Liter/Stroke)	1.48
Air Inlet (PT)	1/4"
Air Hose Size (I.D.)	6.5mm (1/4")
Capacity	Steel Rivets : Min. 3/32"(2.4mm) Max. 3/16"(4.8mm) Stainless Rivets : Max. 5/32"(4.0mm)

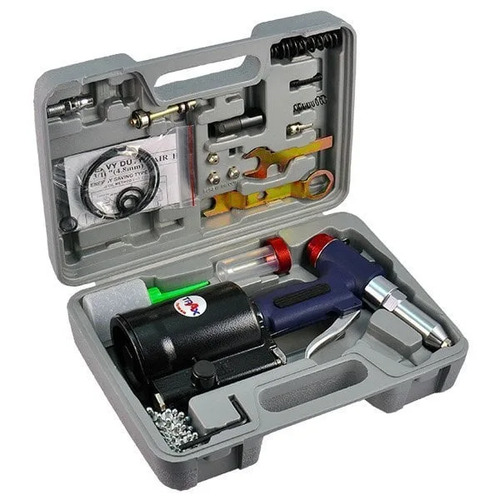

Contents:

No.	Description	Quantity
1	Air Hydraulic Riveter (ARX-200N)	1
2	Nosepiece: 3/32" (2.4mm), 1/8" (3.2mm) 3/16" (4.8mm), 5/32" (4.0mm)	4
3	Jaw & Jaw Case Replacement Assembly	1
4	Valve & Trigger Replacement Assembly	1
5	Return Spring	1
6	Bolt Plug	1
7	Jaw Case Spring	1
8	Valve Pusher	1
9	Spanner Gauge 17, 15, 71mm	1
10	Spanner 24, 15, 10mm	1
11	O-ring	6
12	Safety Cap	1
13	Safety Cap Nut	1
14	Oiler	1
15	Hex Wrench	1
16	Plug	1
17	Rivets 3/32" (2.4mm)	10
18	Rivets 1/8" (3.2mm)	10
19	Rivets 5/32" (4.0mm)	10
20	Rivets 3/16" (4.8mm)	10
