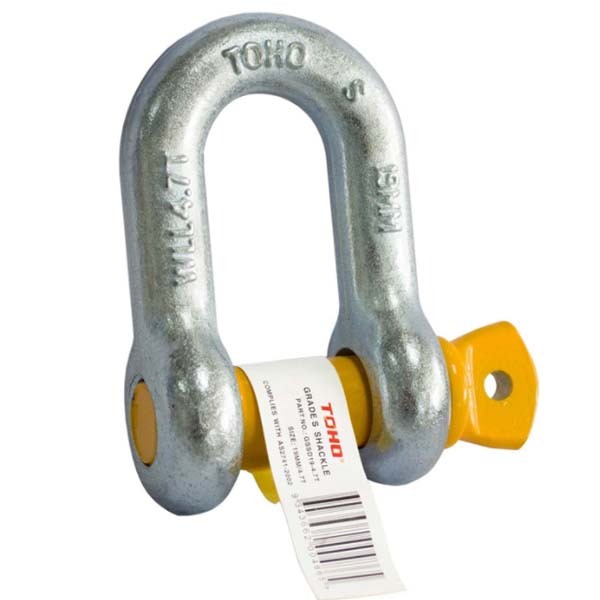

Toho Yellow Screw Pin Dee Shackle Galvanised Grade S 11mm 1.5Tonne

Description

Toho Yellow Screw Pin Dee Shackle Galvanised Grade S

Compliant and meet the requirement of AS 2741.
The most common shackles used in lifting applications, with a high strength to size ratio.
Easy and effective way of providing a connection of slings, chains and wire ropes.
Supplied in a galvanised finish with yellow painted pin.
Suitable applications: Marine, agricultural, towing, & general industrial.

Specifications

AIMS SKU A0170526

Brand Toho

Model Number GSSD11-1.5T

Barcode Number 9343662004896

WLL (T) 1.5

Body Diametre 11 mm

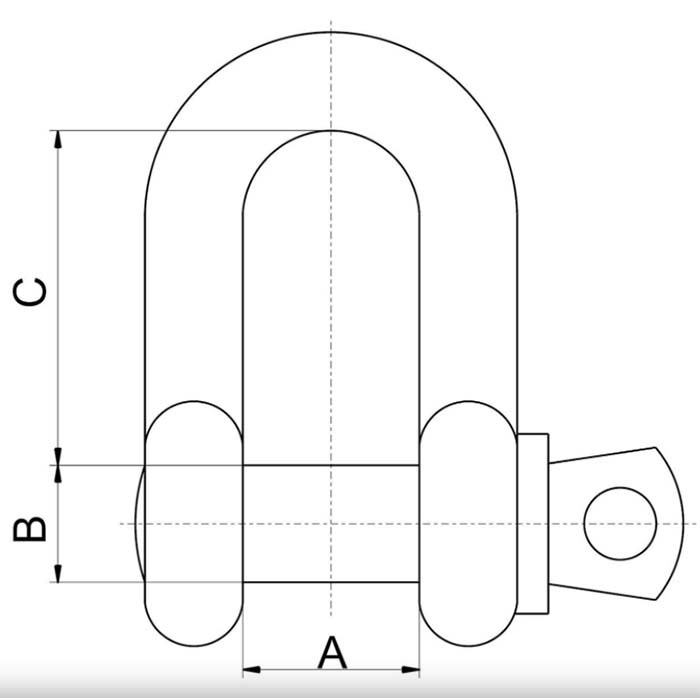

Throat Opening (A) mm 18

Pin Diametre (B) mm 13

Throat Depth (C) mm 38

Type Dee Shackle Screw Pin
Finish Galvanised
Grade Grade S
