*** JTEKT (Formerly Koyo Brand) ***

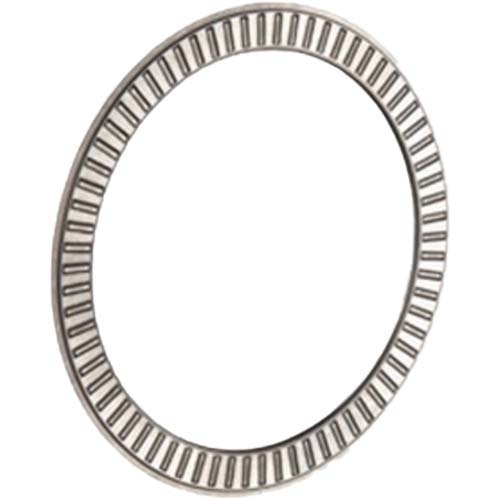

Thrust Needle Roller - Cage & Roller Assembly (NTA)
- Thrust needle roller and cage assembly with inch nominal dimensions using needle rollers of the smallest practical diameter.
About Thrust Needle Roller And Cage Assemblies, Thrust Washer

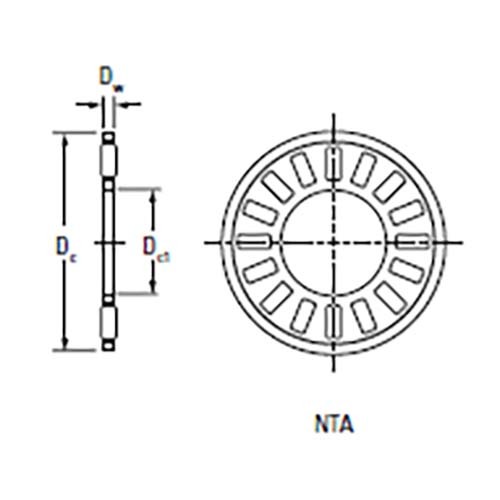

- Dimensions for bore and O.D. of thrust assemblies and washers are nominal.
- Thrust washers burnished at least one - quarter of bore area (remainder is rough breakaway finish).
- O.D. finish of washers will be as blanked.
About Mounting Tolerances Thrust Needle Roller And Cage Assembly
- On NTA inch type thrust needle roller and cage assemblies, the cage bore has a larger contact area and a closer tolerance than outer diameter.
- Therefore, bore piloting is preferred for these assemblies.
- To reduce wear, it is suggested that the piloting surface for the cage be hardened to an equivalent of at least 55 HRC.
- Where design requirements prevent bore piloting, the NTA thrust needle roller and cage assemblies may be piloted on the outer diameters.
- It should be noted that the "diameter to clear washer O.D." given in the bearing tables is not suitable for outer diameter piloting.
- For such cases, suitable O.D. piloting dimensions should be determined in consultation with your representative the engineering section of this catalog.
