Specifications

AIMS SKU A0016162
Brand Sutton Tools
Model Number T9050556
Barcode Number 9311963031118
Diameter (inch) 7/32
TPI 24
Shank (mm) 5.6
L1 (mm) 62
L2 (mm) 17
L3 (mm) 23
z 3
Drill Size (mm) 4.5
L4 (mm) 7
Square Size (mm) 4.5
• Group Code T905
• System of Measurement ISO529
• Thread Form British Standard Whitworth 55 (BSW)
• Material High Speed Steel (HSS)
• Finish Bright

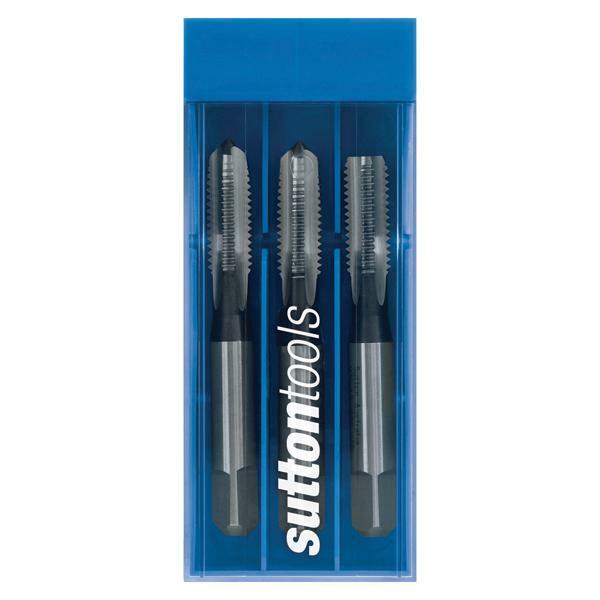

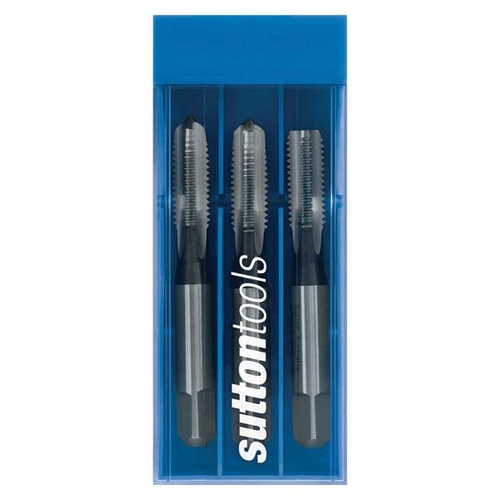

• Lead Taper/Intermediate/Bottoming
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance Z3 Medium
