Specifications
- AIMS SKU A0016136
- Brand Sutton Tools
- Model Number T9032223
- Barcode Number 9311963018232
- Diameter (inch) 7/8
- TPI 9
- Shank (mm) 16
- L1 (mm) 118
- Square Size (mm) 12.5
- Drill Size (mm) 19.5
- L2 (mm) 38
- L4 (mm) 16
- z 4
- Group Code T903
- System of Measurement ISO529
- Thread Form UNC
- Material High Speed Steel (HSS)
- Finish Bright
- Lead Taper/Intermediate/Bottoming
- Application N (for normal general purpose type materials)
- Nut Tolerance 2B
- Max Cut Depth 1xD
- Tap Type Straight Flute
- Shank Form Reinforced Shank (with square drive)
SKU: A0016136

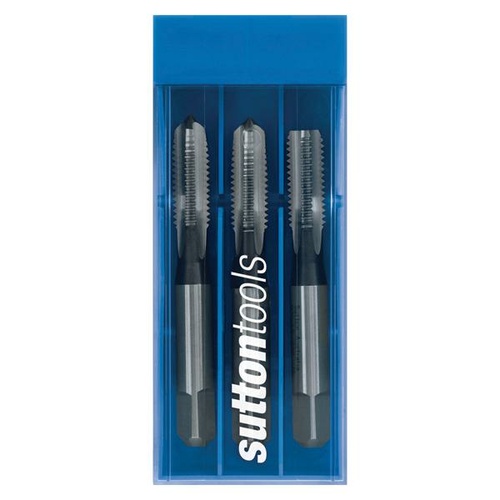

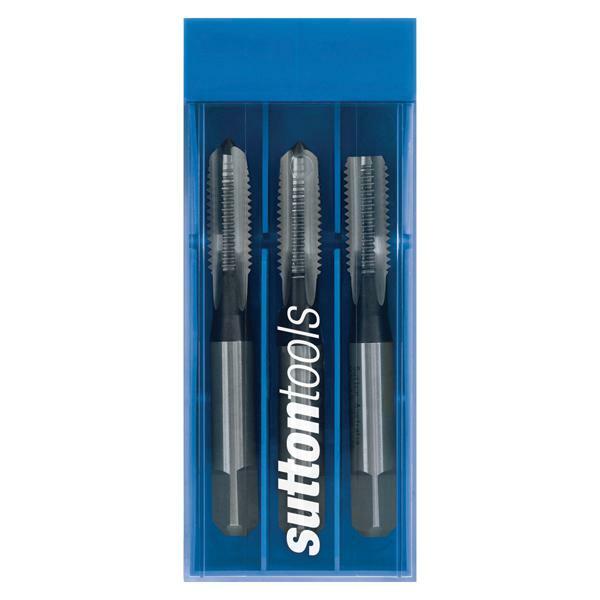

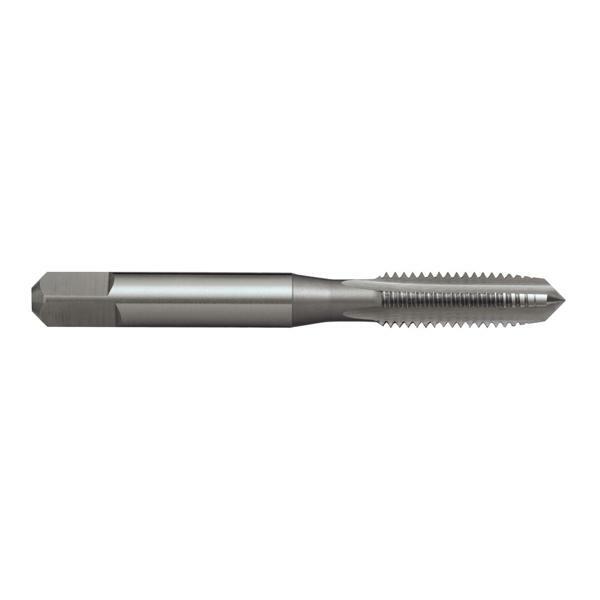

Sutton T9032223 UNC 7/8-9 Straight Flute Tap Set (3 piece) ISO529 HSS
Sutton Straight Flute Tap Sets - UNC
$281.42
SAVE $285.22 (50%)
