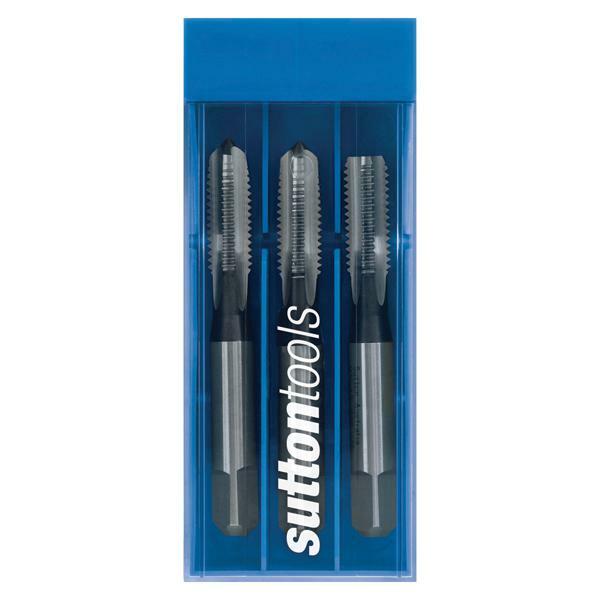

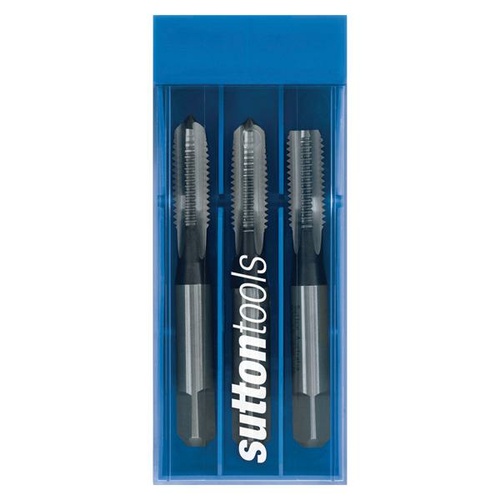

Specifications

AIMS SKU A0016127
Brand Sutton Tools
Model Number T9030549
Barcode Number 9311963092911
Diameter (inch) #12
TPI 24
Shank (mm) 5.6
L1 (mm) 62
L2 (mm) 17
L3 (mm) 23
z 3
Drill Size (mm) 4.5
L4 (mm) 7
Square Size (mm) 4.5
• Group Code T903
• System of Measurement ISO529
• Thread Form UNC
• Material High Speed Steel (HSS)
• Finish Bright
• Lead Taper/Intermediate/Bottoming
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance 2B
