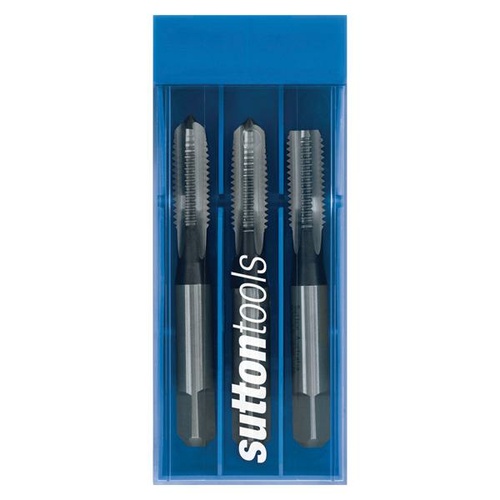

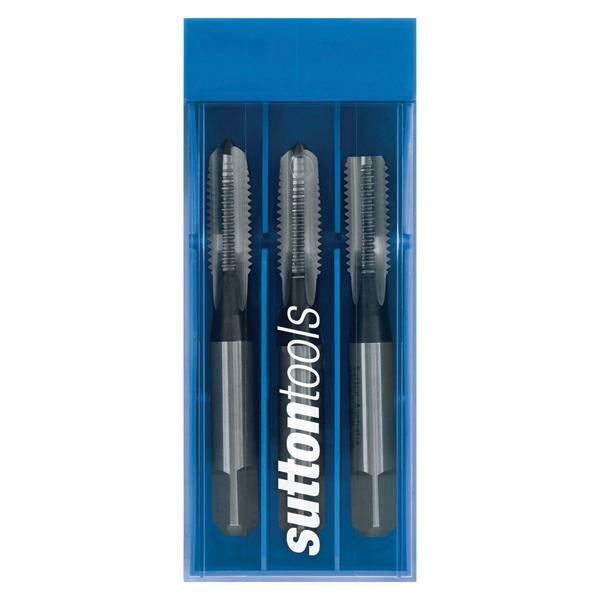

Sutton T9021006 MF10 x 1.25 Straight Flute Tap Set (3 piece) ISO529 HSS - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 2B
Lead: Set

Specifications

AIMS SKU A0016111

Brand Sutton Tools

Model Number T9021006

Barcode Number 9311963092966

Shank (mm) 10

L1 (mm) 80

Pitch (mm) 1.25

L2 (mm) 24

L3 (mm) 34

z 4

Diameter (metric) MF10

Drill Size (mm) 8.8

L4 (mm) 11

Sq 8

Group Code T902
System of Measurement ISO529
Thread Form ISO Metric Fine (MF)
Material High Speed Steel (HSS)
Finish Bright
Lead Taper/Intermediate/Bottoming
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance 2B
