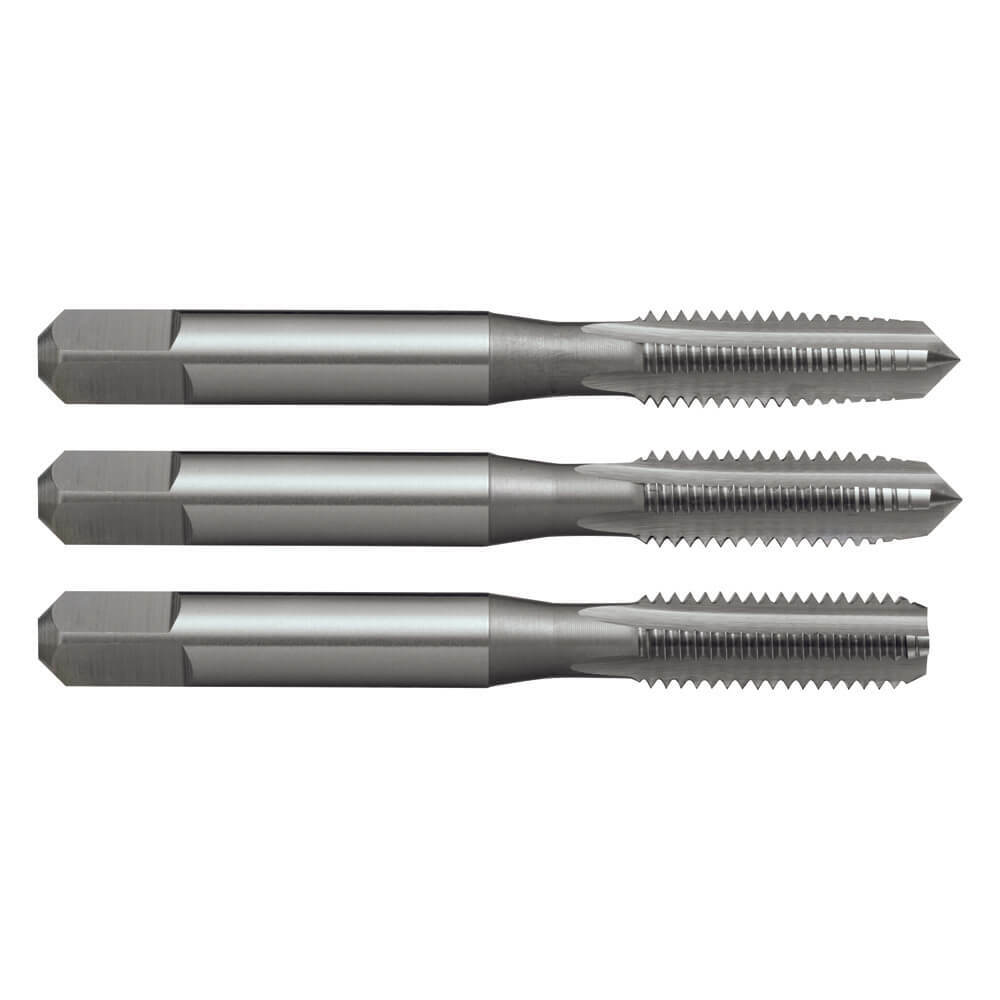

Sutton T9010700 M7 x 1 Straight Flute Tap Set (3 piece) ISO529 HSS - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations
Depths up to approximately 1 x D1

Specifications:

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1x D
Shank Form: A
Type: Straight Flute
Standard: ISO529
Thread Form: M
Nut Tolerance: ISO 2 / 6H
Lead: Set

Application

ISO: H
VDI: 41
Description: Cast Iron
Condition: Hardened and Tempered
Hardness: 55HRC

Specifications

AIMS SKU A0016096

Brand Sutton Tools

Model Number T9010700

Barcode Number 9311963028262

Shank (mm) 7.1

L1 (mm) 66

Pitch (mm) 1

Diameter (metric) M7

L2 (mm) 19

Sq 5.6

z 4

L4 (mm) 8

L3 (mm) 26

Group Code T901
System of Measurement ISO529
Thread Form M
Material High Speed Steel (HSS)
Finish Bright
Lead Taper/Intermediate/Bottoming
Application N (for normal general purpose type materials)
Nut Tolerance ISO 2 / 6H
Max Cut Depth 1x D
Tap Type Straight Flute
Shank Form A
