Specifications
- AIMS SKU A0016099
- Brand Sutton Tools
- Model Number T9011000
- Barcode Number 9311963006581

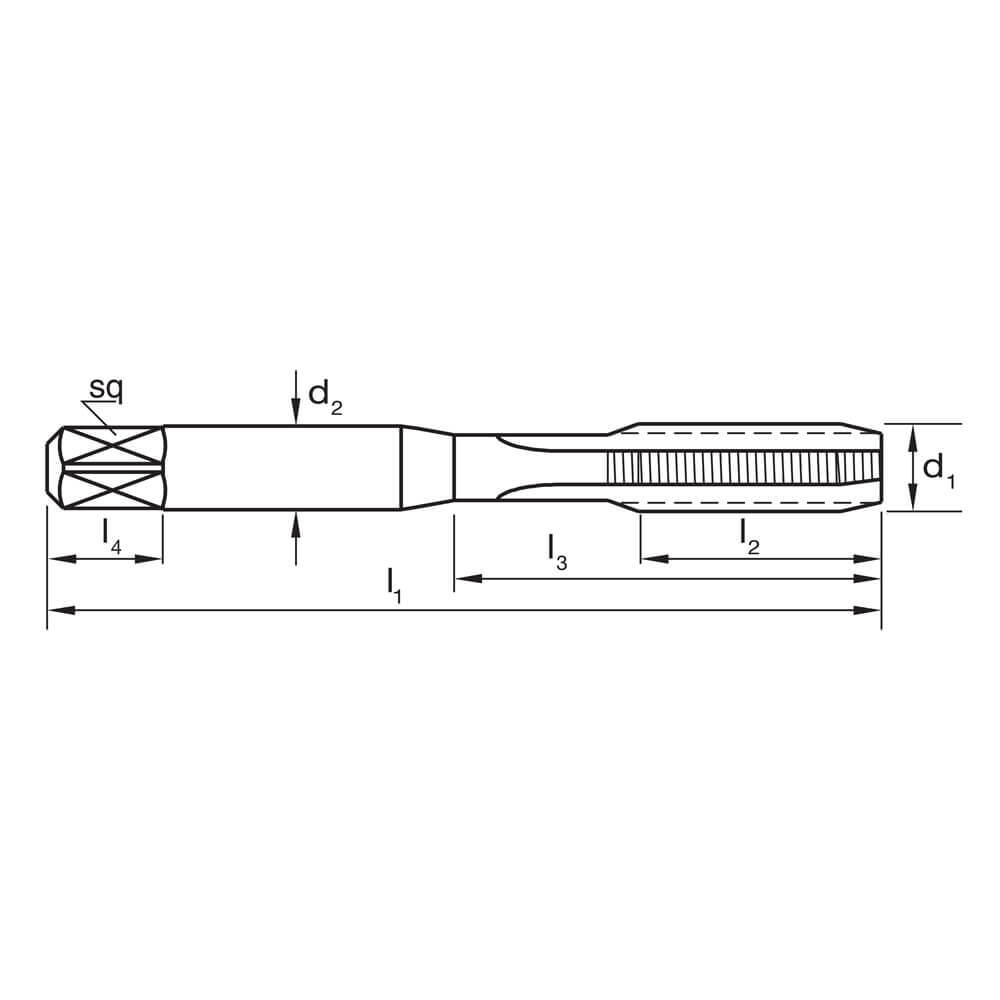

- Shank (mm) 10
- L1 (mm) 80
- Pitch (mm) 1.5
- L2 (mm) 24
- L3 (mm) 34
- z 4
- Diameter (metric) M10
- L4 (mm) 11
- Sq 8
- Group Code T901
- System of Measurement ISO529
- Thread Form M
- Material High Speed Steel (HSS)
- Finish Bright
- Lead Taper/Intermediate/Bottoming
- Application N (for normal general purpose type materials)
- Shank Form A
- Max Cut Depth 1x D
- Tap Type Straight Flute
- Nut Tolerance ISO 2 / 6H
SKU: A0016099

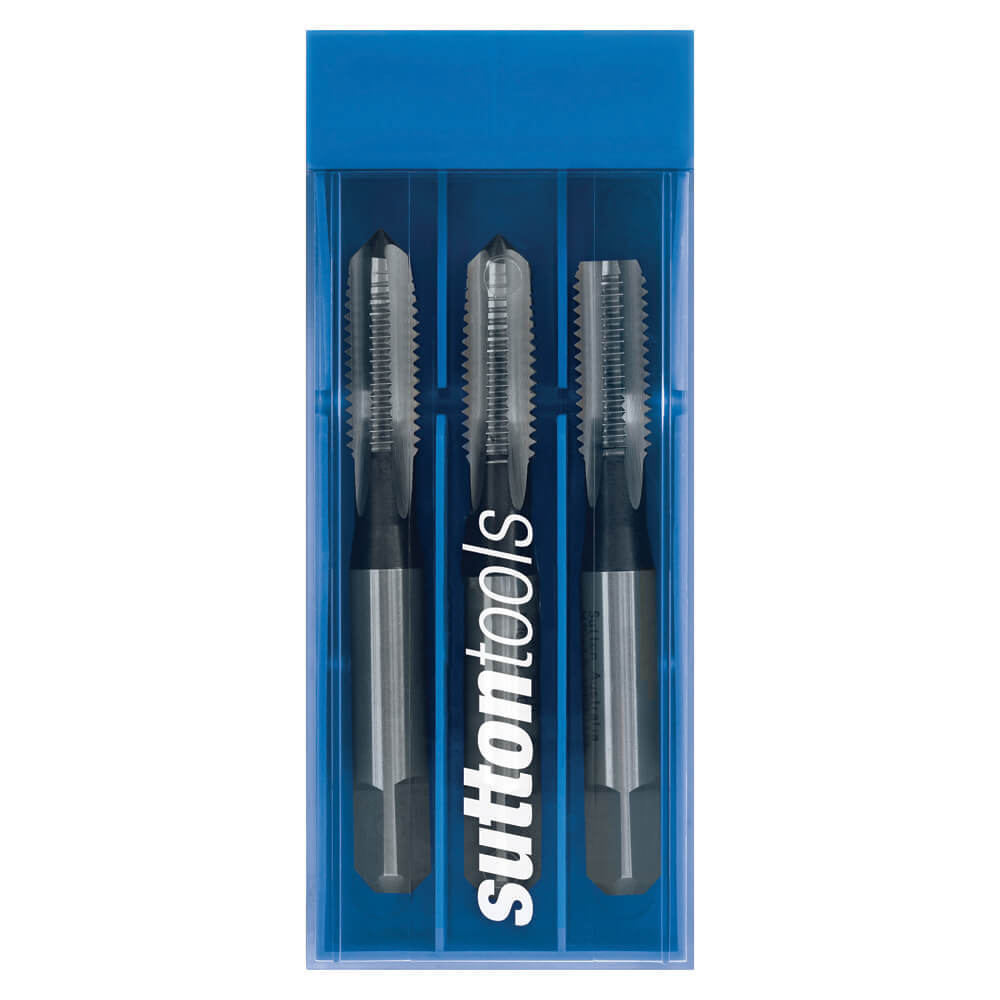

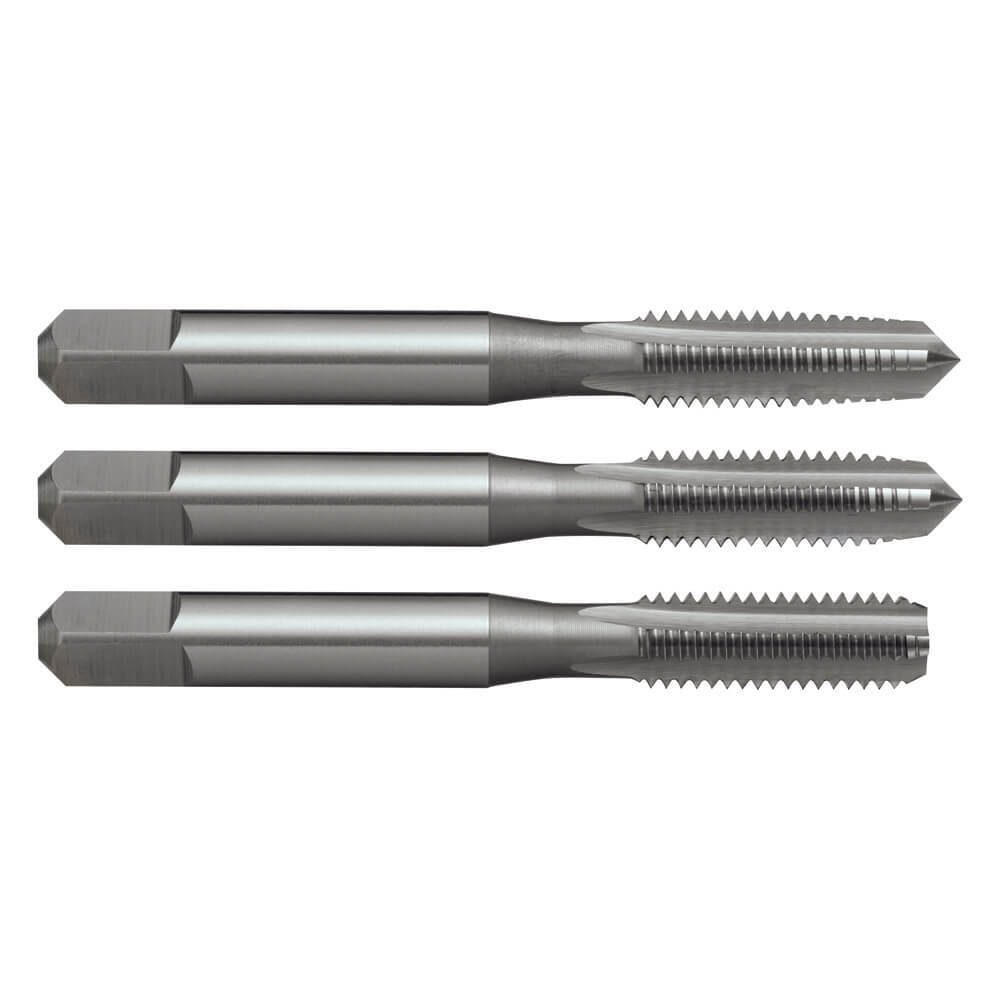

Sutton T9011000 M10 x 1.5 Straight Flute Tap Set (3 piece) ISO529 HSS
Sutton Straight Flute Tap Sets - M
$92.64
SAVE $9.26 (9%)
