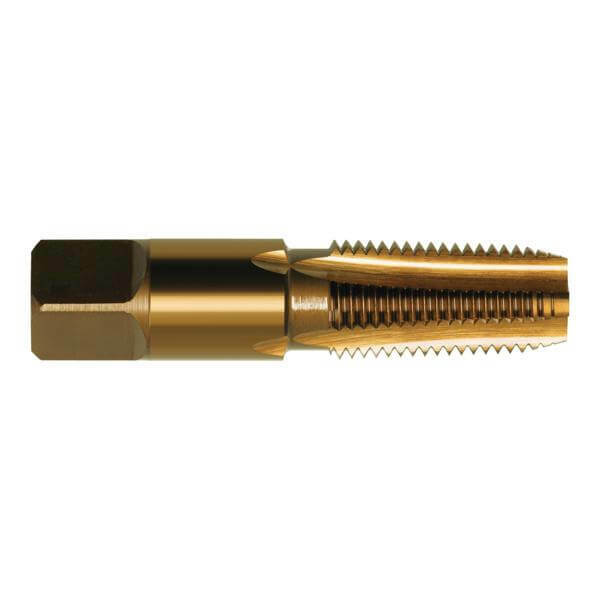

Sutton T4872667 NPT 3/4 x 14 Straight Flute Tap Bottoming HSS Colour Temp

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Suitable for both hand and machine operations
Taper pipe reamer recommended prior to tapping

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Colour Temp
Max Cut Depth: 1.5xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Taper
Standard: ANSI B94-9
Thread Form: NPT
Nut Tolerance: ANSI B1.20.1
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015821

Brand Sutton Tools

Model Number T4872667

Barcode Number 9311963011462

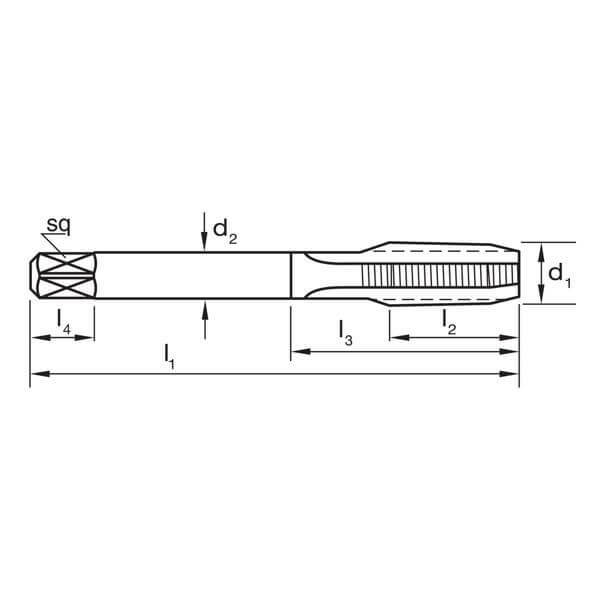

Diameter (inch) 3/4

TPI 14

Shank (mm) 23

L1 (mm) 82

L2 (mm) 35

z 4

Drill Size (mm) 23

L4 (mm) 17.5

Sq 17.25

Group Code T487
System of Measurement ANSI B94-9
Thread Form NPT
Material High Speed Steel (HSS)
Finish Colour Temperature
Lead Bottoming
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Taper
Nut Tolerance ANSI B1.20.1
