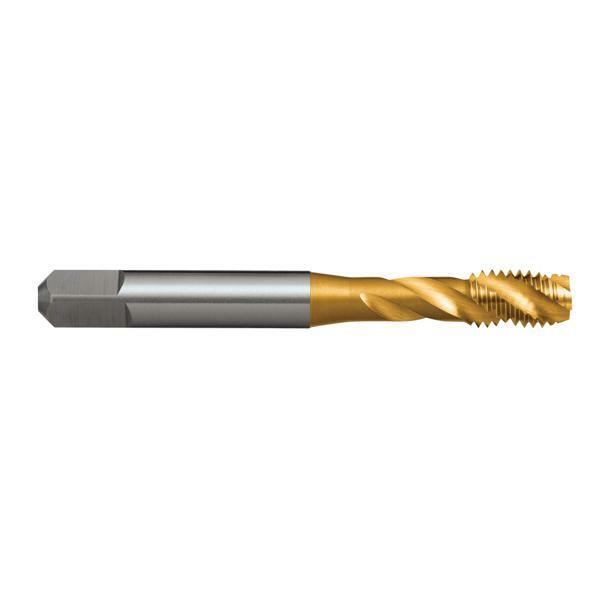

Sutton T4431588 UNF 5/8 x 18 Spiral Flute Tap - Bottoming - HSSE V3 TiN - Sutton Tools

Description

Features

Form C / 3 x P General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: UNF
Lead: 2B

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications

AIMS SKU A0015436

Brand Sutton Tools

Model Number T4431588

Barcode Number 9311963067230

Diameter (inch) 5/8

TPI 18

Shank (mm) 12.5

L1 (mm) 102

L2 (mm) 20

z 3

Drill Size (mm) 12.8

L4 (mm) 13

Sq 10

Group Code T443
System of Measurement ISO529
Thread Form UNF
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead 2B
Helix Angle R40
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
