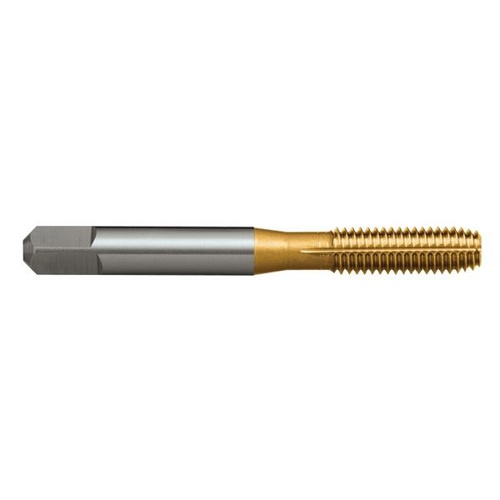

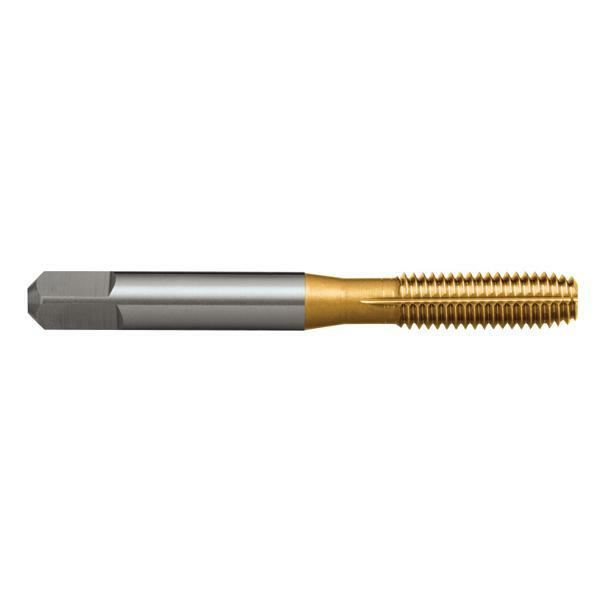

Sutton T4290635 UNC 1/4-20 Thread Forming Tap Bottoming Short HSSE V3 TiN - Sutton Tools

Description

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5
TiN For longer tool life

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0015287

Brand Sutton Tools

Model Number T4290635

Barcode Number 9311963066967

Diameter (inch) 1/4

TPI 20

Shank (mm) 6.3

L1 (mm) 66

L2 (mm) 19

L3 (mm) 25

Drill Size (mm) 5.8

L4 (mm) 8

Sq 5

Group Code T429
System of Measurement ISO529
Thread Form UNC
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Fluteless - Single Coolant Groove
Nut Tolerance 2B
