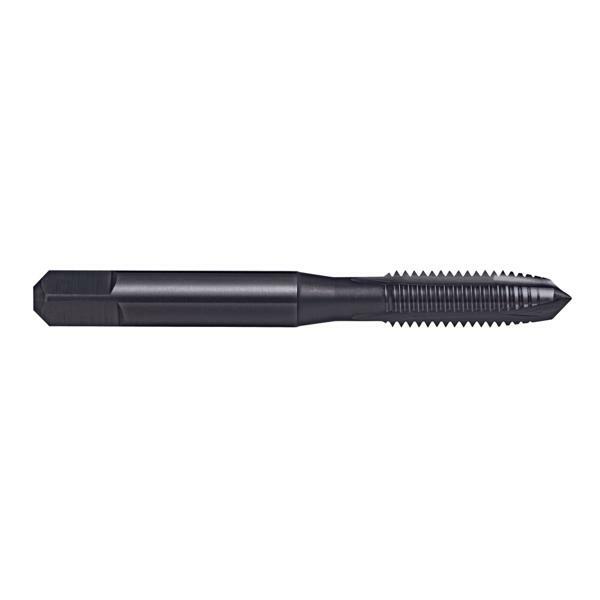

Sutton T4071607 Metric MF16 x 1.5 Spiral Point Tap - HSSE V3 Blue - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials) Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015081

Brand Sutton Tools

Model Number T4071607

Barcode Number 9311963348001

Shank (mm) 12.5

L1 (mm) 102

Pitch (mm) 1.5

L2 (mm) 32

z 3

Diameter (metric) MF16

Drill Size (mm) 14.5

L4 (mm) 13

Sq 10

Group Code T407
System of Measurement ISO529
Thread Form ISO Metric Fine (MF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
