Description

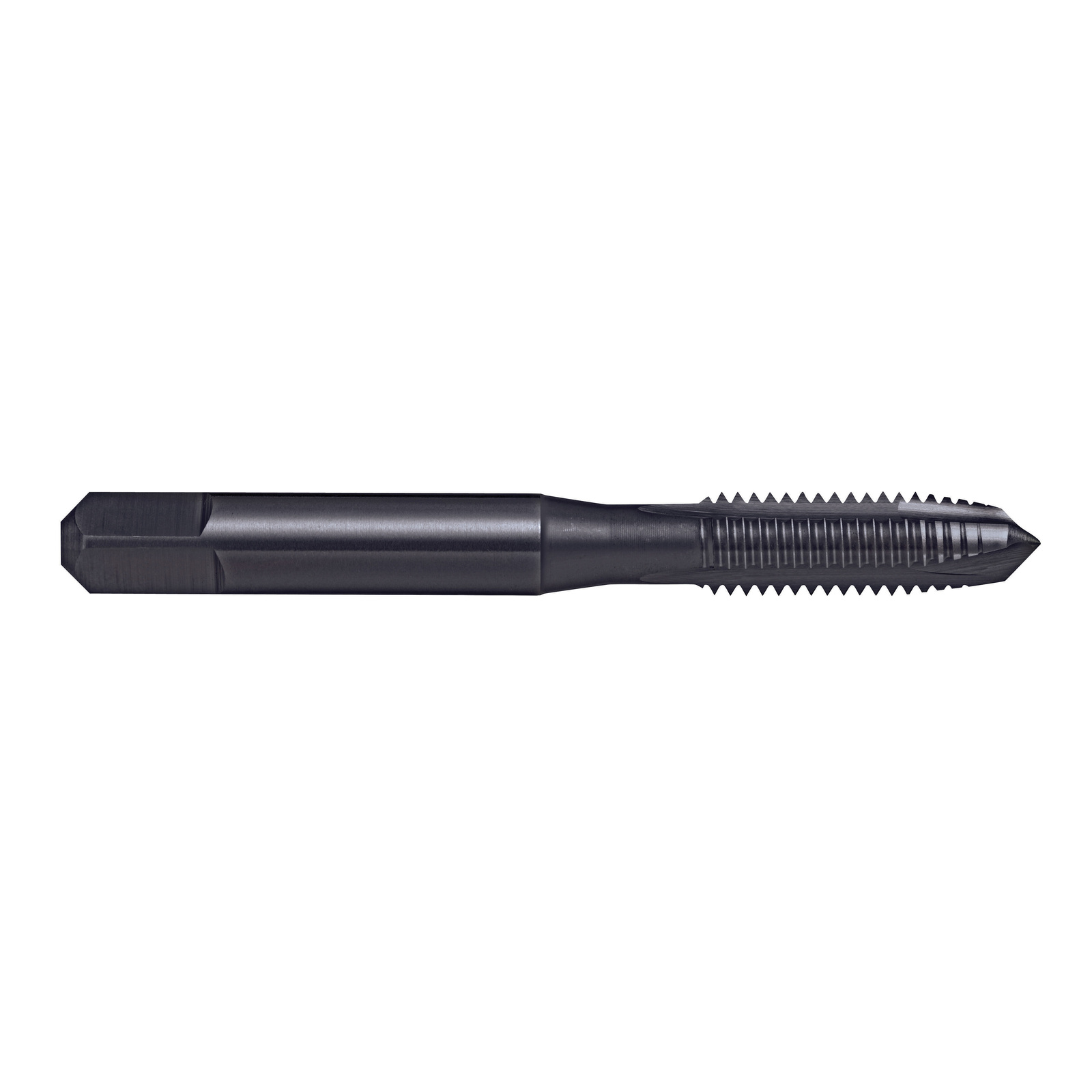

Spiral Point Gun Tap - M - Intermediate Blu, HSSE V3

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: N
Material: HSSE V3
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: M
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Note: T3942200, T3942400, and T3943000 - Available on request as special manufacture. Subject to lead time.

Specifications

AIMS SKU A0014922

Brand Sutton Tools

Model Number T3942000

Barcode Number 9311963009704

Size (metric) M20 x 2.5

L1 (mm) 112

Pitch (mm) 2.5

L2 (mm) 37

z 4

L4 (mm) 14

Sq 11.2

d1 M20

Drill Diameter 17.5

D2 14

Type Spiral Point (Gun) Tap
Designation N
System of Measurement Metric
Thread Form M
Material HSSE V3
Finish Steam Oxide (Blu)
Lead Form B / 4.5 x P
Max Cut Depth 3 x D
Tap Type Spiral Point (Gun)
Chamfer Intermediate
Limit & Nut Tolerance ISO 2 / 6H
